ElectrIQ PowerPod 2 - Clearances and Knockout Locations; Mounting Clearances and Dimensions

21Installation Manual
Mounting System
44-1/4" minimum from top of
mounting bracket to ground
44-1/4" minimum
from top of mounting
bracket to ground
18-1/4"
minimum
from top of
mounting
bracket to
ground
1-3/8"
adjustable
footpegs
6" minimum
clearance between
3" minimum
clearance
between
6" minimum
between
6" minimum
between
15" minimum
away from ceiling
9" minimum
clearance between

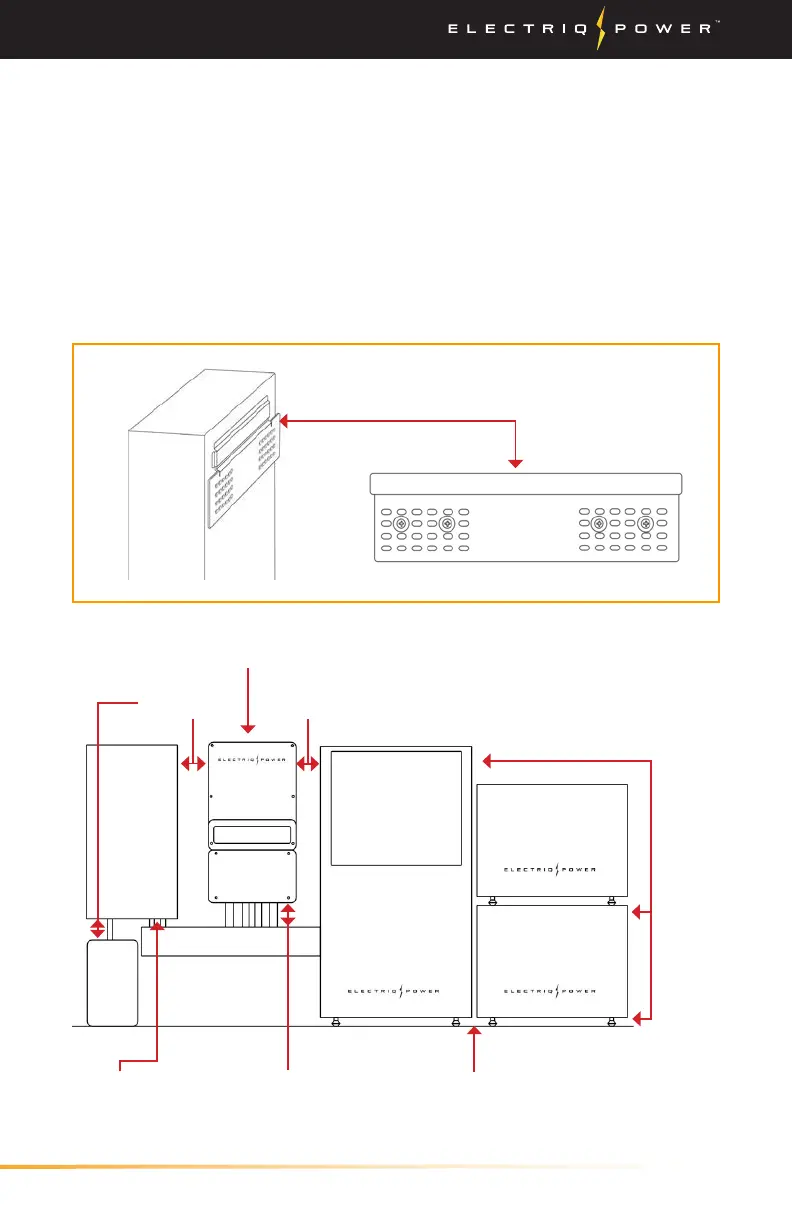

CLEARANCES & KNOCKOUT LOCATIONS
Placement of the PowerPod 2 system and its components are
critical Wires are pre-measured for the configurations shown in this
installation manual or when it is reversed. Utilize the minimum
distances between all components as stated in this manual.
There are multiple knockouts on the inverter and battery enclosures,
as shown with the diagrams with red arrows, to help give the
installation process more flexibility when placing the hardware.
