ElectrIQ PowerPod 2 - Battery Wiring and BMS Orientation; Wiring for Left Inverter Position

39Installation Manual
Installing System / Battery

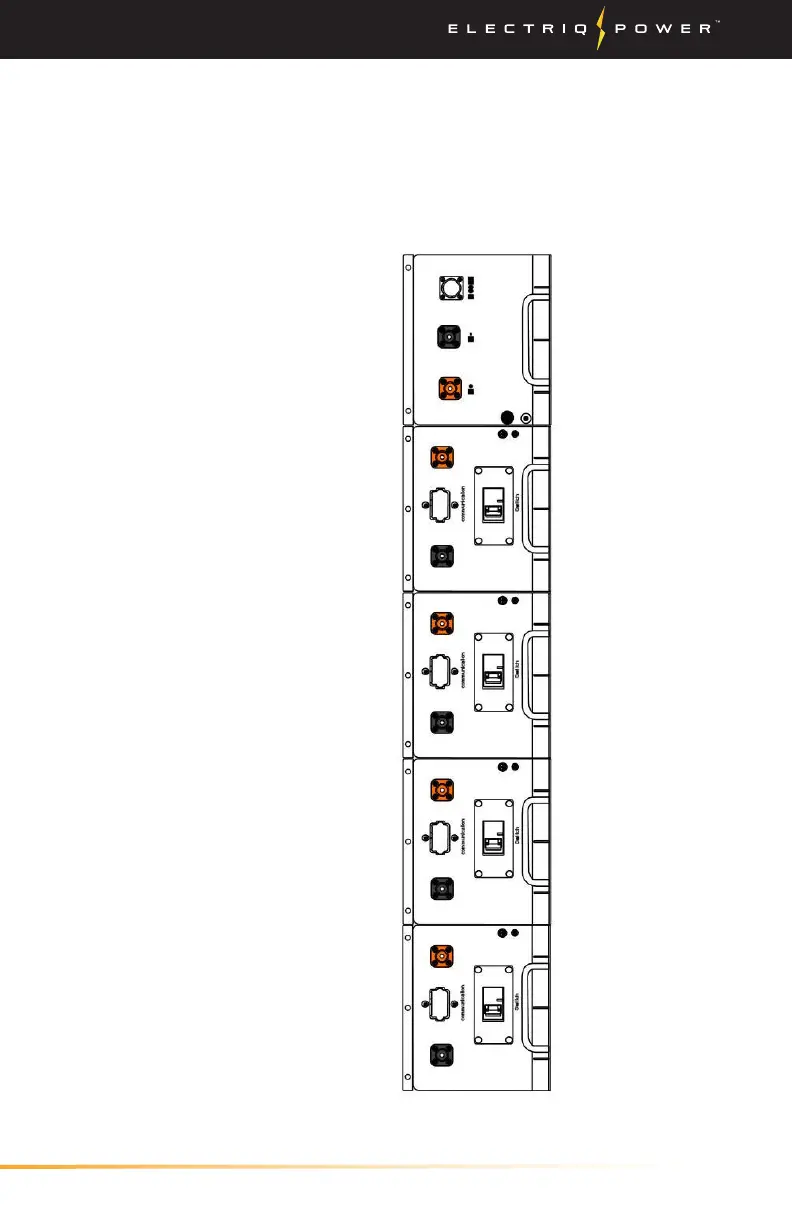

5. The diagram below shows the proper orientation the batteries
will need to be mounted within the enclosure and wired when the
inverter is in the left position.
6. Ensure the BMS (top box) is also orientated in the correct position.
Use the sticker on the back of the enclosure as a guide.
Battery Module
Battery Module
Battery Module
Battery Module
-
-
-
-
+
+
+
+
Communication
& Switch
Communication
& Switch
Communication
& Switch
Communication
& Switch
BMS
COMM IN
IN -
IN +
