ElectrIQ PowerPod 2 - Routing Final Negative Wire; Connecting Final Negative Wire to BMS

45Installation Manual

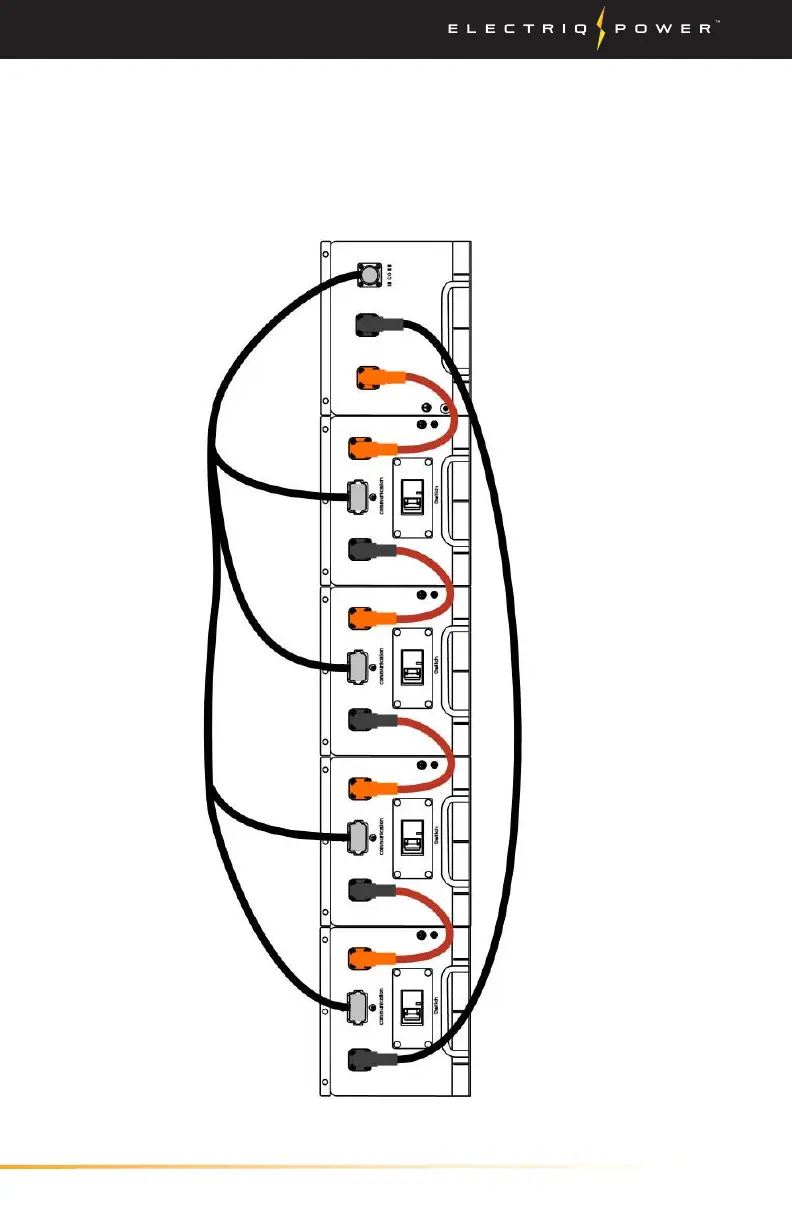

14. Route the final negative wire from the last battery (position 4)
to the negative of the BMS. NOTE THE COLOR CODING IN THE
DIAGRAM BELOW.
Orientation When Inverter is on the Left
Battery Module
Battery Module
Battery Module
Battery Module
+
+
+
+
-
-
-
-
Communication
& Switch
Communication
& Switch
Communication
& Switch
Communication
& Switch
BMS
COMM IN
IN -
IN +
Installing System / Battery
