ElectrIQ PowerPod 2 - Wiring Batteries from Positive to Negative; Connecting Batteries to BMS

44 Installation Manual
Installing System / Battery

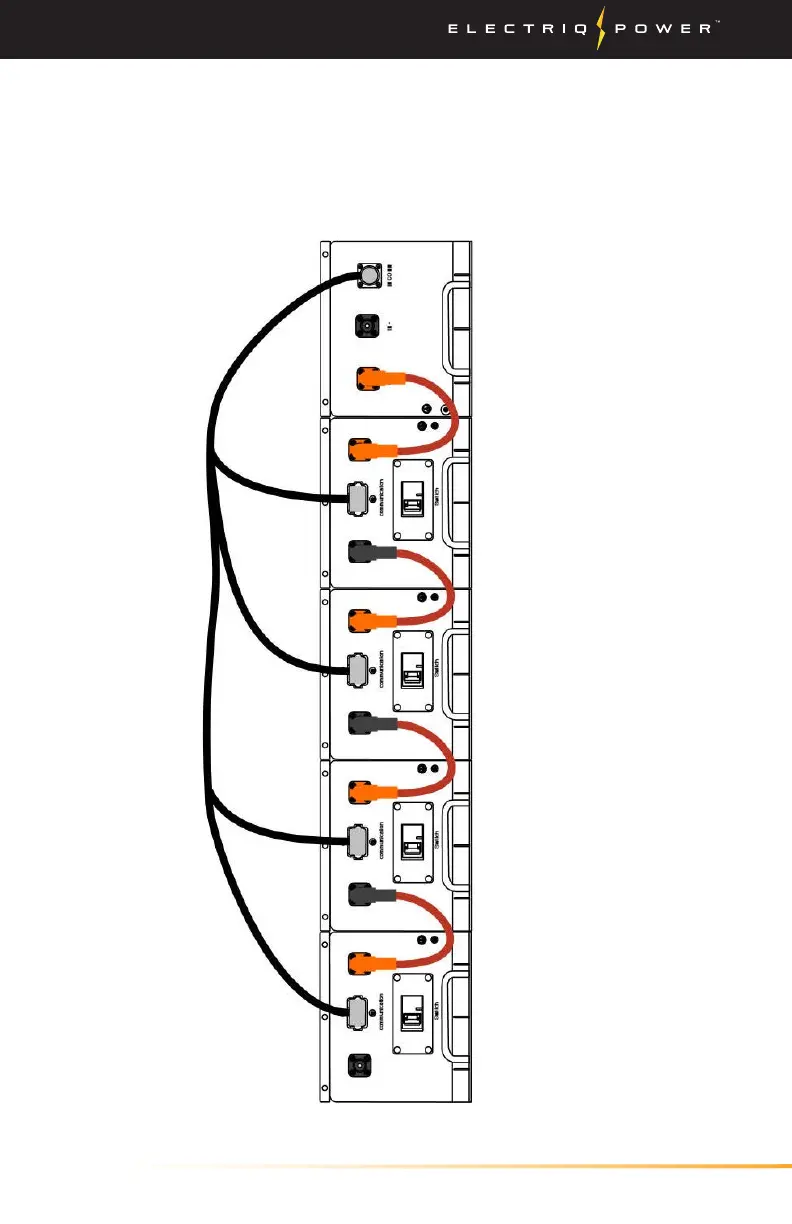

12. Begin to wire the batteries together from positive to negative.
13. Once the batteries are all wired together, take the final positive
connection on last battery and connect that back to the BMS.
Orientation When Inverter is on the Left
Battery Module
Battery Module
Battery Module
Battery Module
+
+
+
+
-
-
-
-
Communication
& Switch
Communication
& Switch
Communication
& Switch
Communication
& Switch
BMS
COMM IN
IN -
IN +
