ElectrIQ PowerPod 2 - Inverter Right Side Battery Orientation; Battery and BMS Flipped Orientation

43Installation Manual
Installing System / Battery
Orientation When Inverter is on the Left
Battery Module
Battery Module
Battery Module
Battery Module
+
+
+
+
-
-
-
-
Communication
& Switch
Communication
& Switch
Communication
& Switch
Communication
& Switch
BMS
COMM IN
IN -
IN +

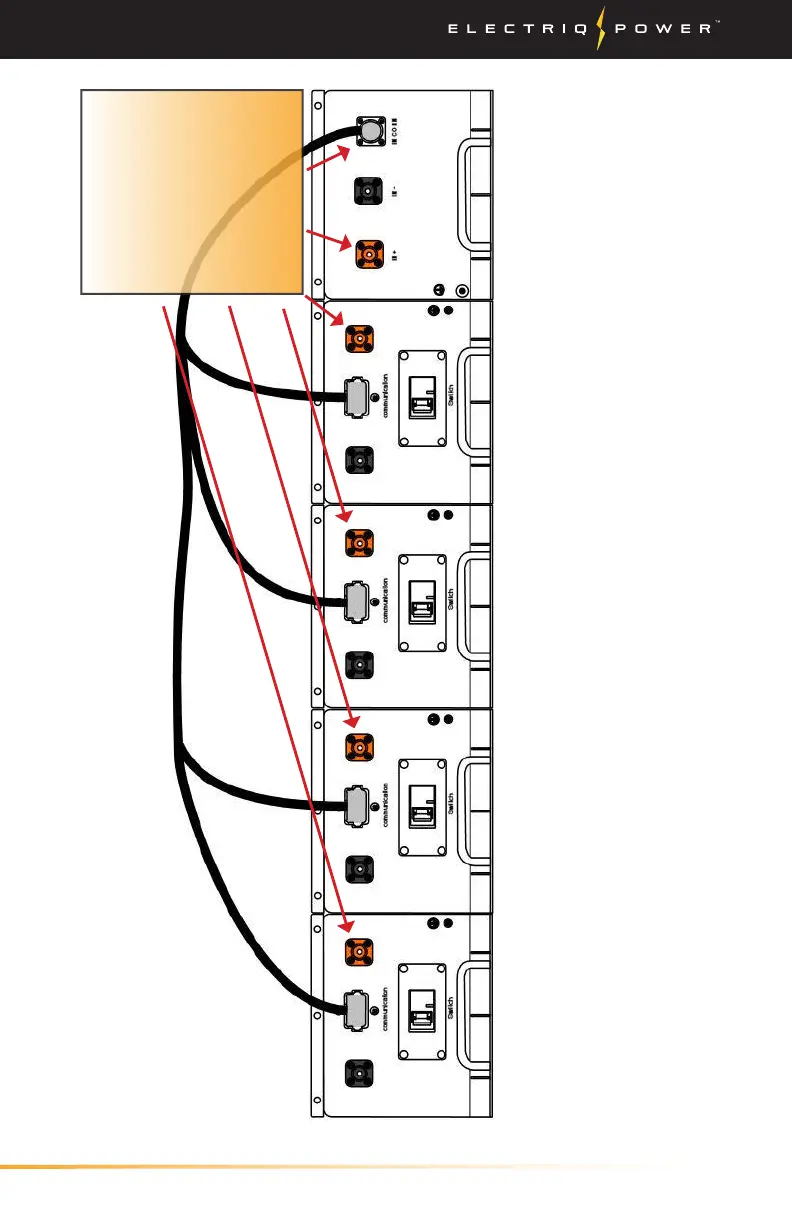

When the inverter is
on the RIGHT side,
the batteries and
BMS are flipped.
The COMM IN is on
the bottom and the
positive connection is
on the top.
