The isolated AC supply may be common to more than one drive as shown in the
“Multiple Axis
Power Wiring” diagrams below. The power leads from each drive should terminate at the trans-
former terminals as shown on the drawing. When powering more than one drive, it is
recommended, but not required, that
individual
secondaries of a transformer be used, so that
the power inputs of the drives are completely isolated.
Intro
F
IGURE
2.3

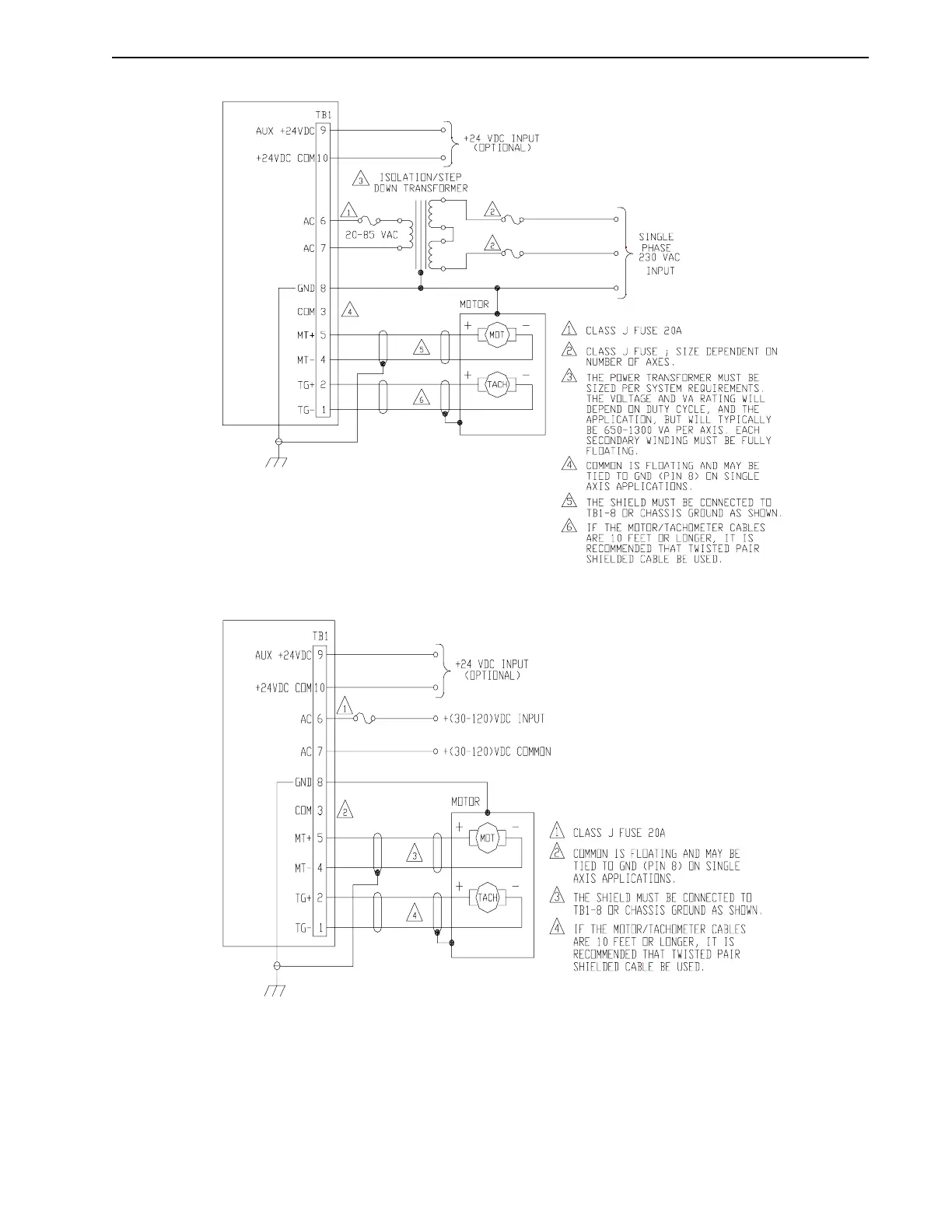

230 VAC Input Power/Motor Wiring
Intro
F
IGURE
2.4
+(30-120) VDC Input Power/Motor Wiring
