Installation 2-9
Instruction Manual
Intro
F
IGURE
2.7

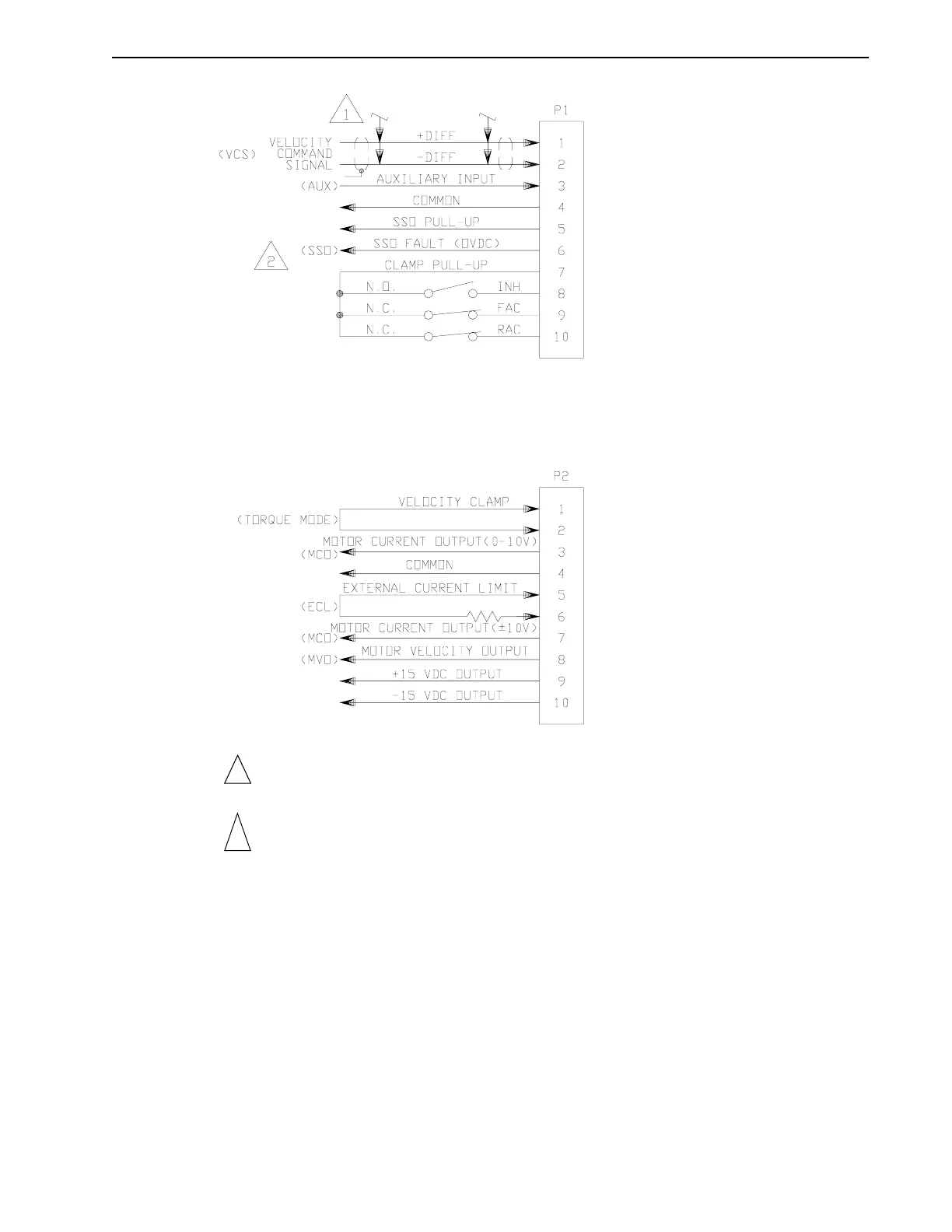

External Interface Connections
1
2
Proper shielding is recommended. The shield may be connected to common (P1 pin 4)
or
to common
on controller end of wire.
The connections shown are with factory default jumper settings. See “Internal Connec-
tions (FAC, RAC and INH)” on page 2-11, for details on connections for other jumper set-
tings.
To Next Page
