Electro-Craft MAX-430 - Wiring Examples

2-16 Installation
P/N 0013-1025-001 Rev F
Typical Wiring Examples

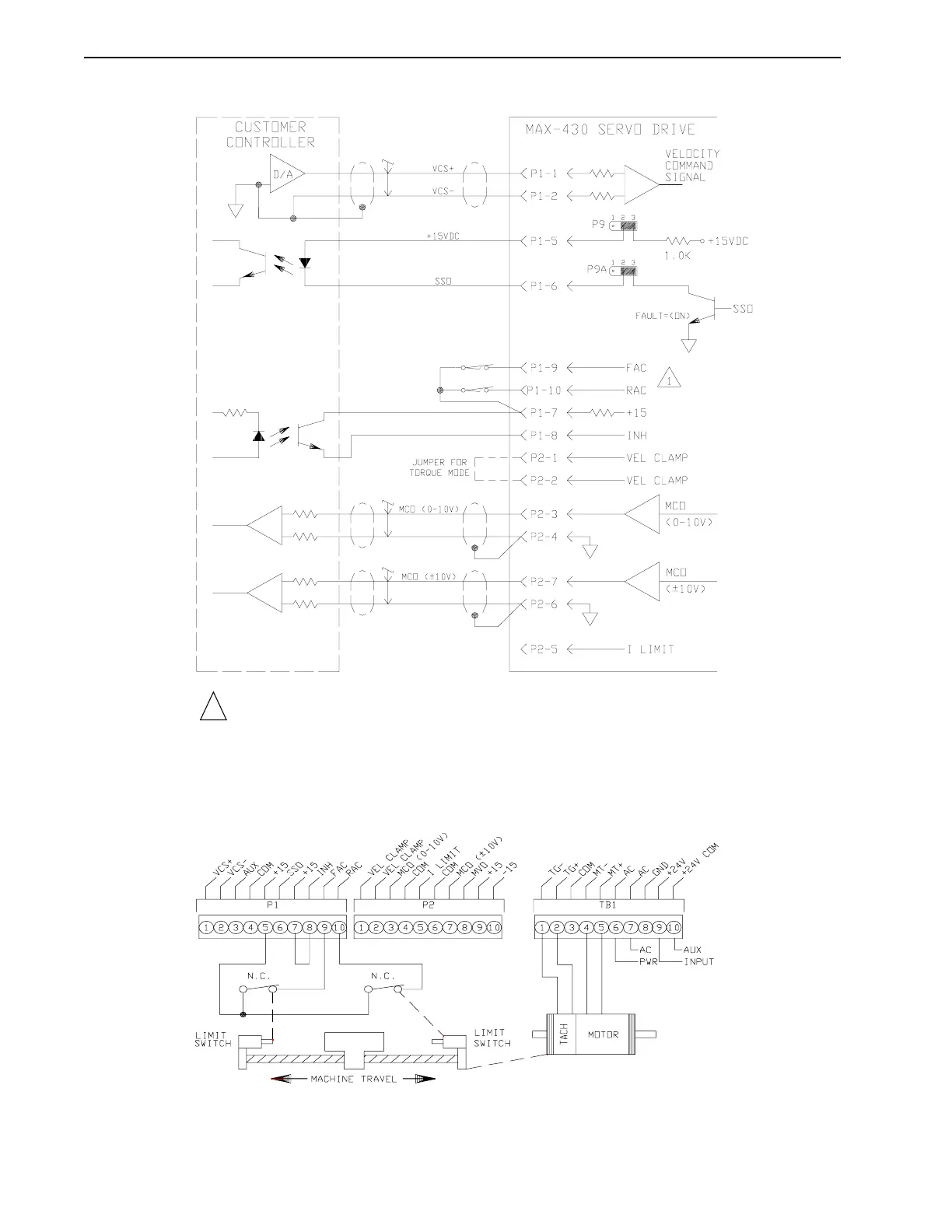

The following diagram illustrates how the forward and reverse amplifier clamps can be wired
as limit switches.
Intro
F
IGURE
2.17
Isolated Logic Interface Connections
Intro
F
IGURE
2.18
Limit Switch Wiring
1
The connections shown are with jumpers in factory default settings. See “Internal Connec-
tions (FAC, RAC and INH)” on page 2-11 for details on connections for other jumper set-
tings.
