Electro-Craft MAX-430

To Next Page

To Previous Page

Installation 2-7

Instruction Manual

Intro

IGURE

2.6

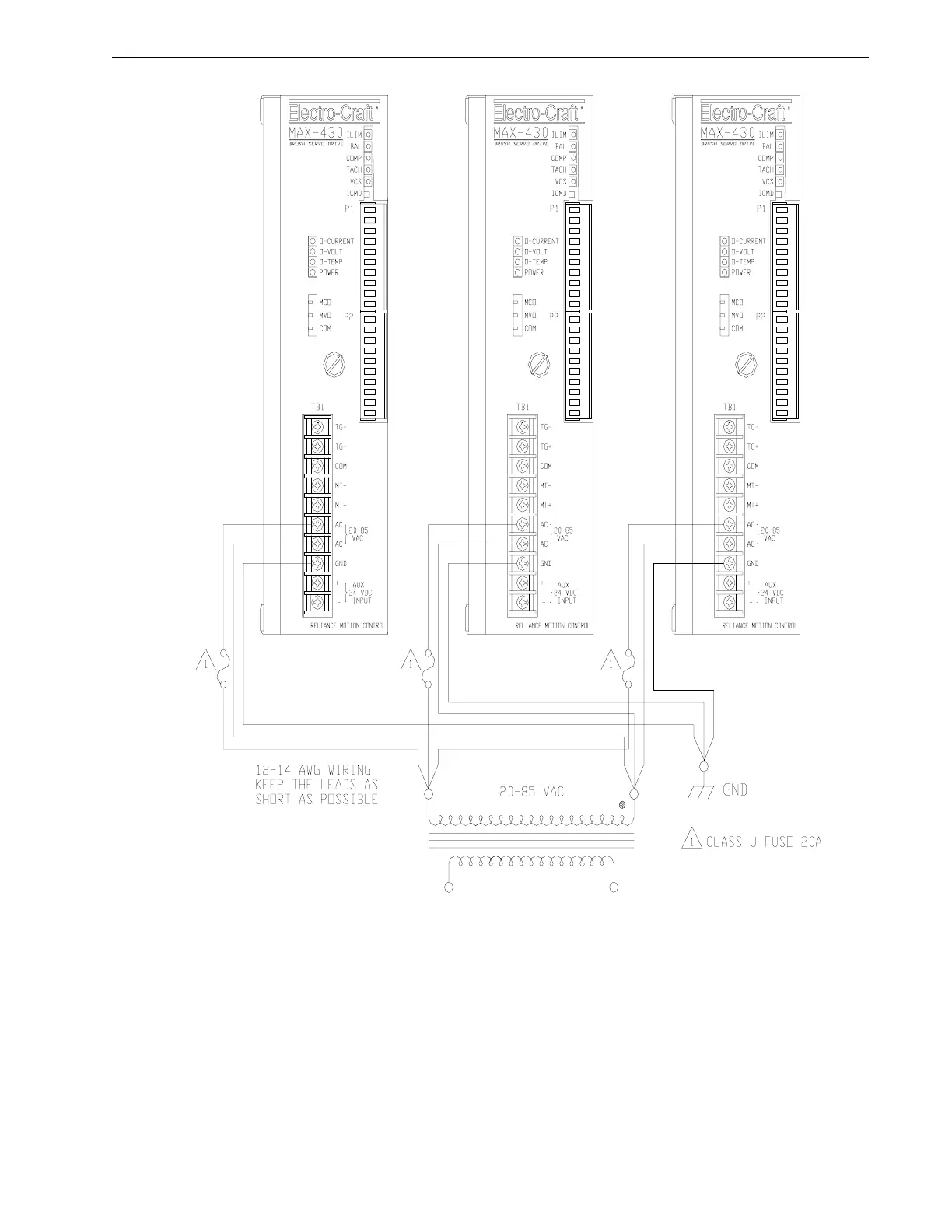

Multiple Axis Power Wiring (One Secondary)

(Alternative Method)
