12
CYCLE, SYSTEMS & COMPONENTS
Electronic Control and Keypad Assembly
The control on the dishwasher consists of the control board and the switch
assembly. The switch is installed into the top of the outer door panel, an elastomer
keypad, used to actuate the switch, is inserted into holes in the top of the outer
door panel. The keypad assembly is attached to the control board with a
connecting ribbon. The keypad is held in place by a spacer that is clipped to the
top of the mount holding the control board. The control is mounted to a carrier
panel that is attached to the outer door panel. It is covered with a mylar blanket.
Control Board Plugs
Throughout this section
references are made to the
plug and pin location on the
electronic control.

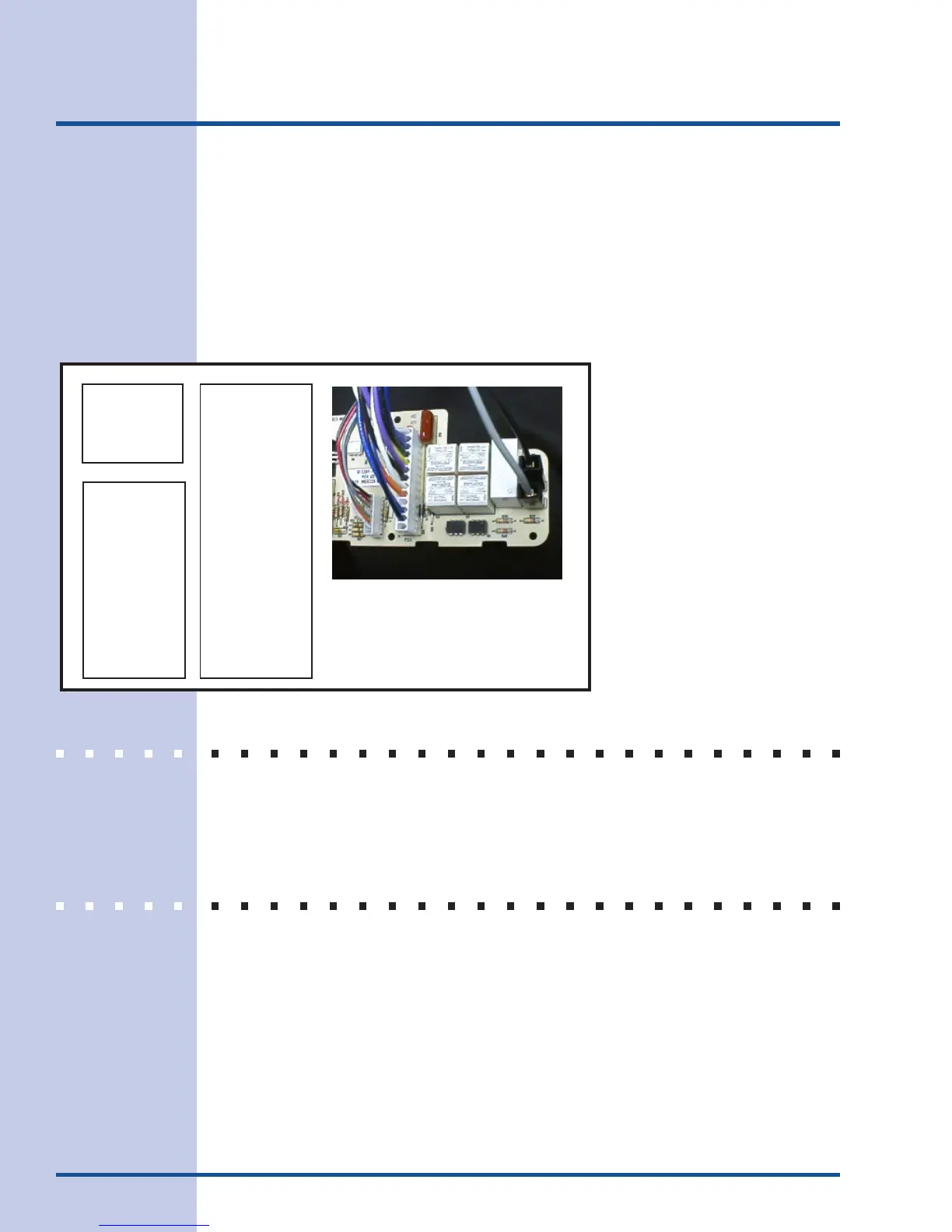

Figure 7
shows a picture of the
electronic control pointing
out plug numbers as well as
pin and color of the wire in
each location.
FILL SYSTEM
Two major components in the fill system are the inlet water valve and the pressure
switch assembly.
INLET WATER VALVE
The inlet valve is an electrically controlled shut-off valve that is used to allow water
to enter the dishwasher. The valve has a flow restrictor to regulate the water flow to
1.08 GPM at between 20 and 120 psi into the tub. The inlet valve is wired to the
electronic control and is opened and closed by the control. The inlet water valve is
located on the front left frame leg just behind the lower front panel
Plug #1
#1 Black
#8 Gray
Plug #2
Black 1
Red 2
Purple 3
Brown 5
Orange 6
White 7
Figure 7
Plug #3
1 White
2 Brown
3Blue
4 Black
5 Yellow
6 Brown
7 Black
8 White
9 Orange
10 Blue
11 Red
