Electrolux 5000 Series - Door Spring

28
SERVICE & DISASSEMBLY
CABINET REMOVAL (CONT.)
DOOR SPRING
1. Remove dishwasher cabinet. See previous section detailed instructions.
2. Raise spring support rod out of mounting hole of “C”arm. (See Figure 38)
3. Reinstall door spring using reverse procedure.

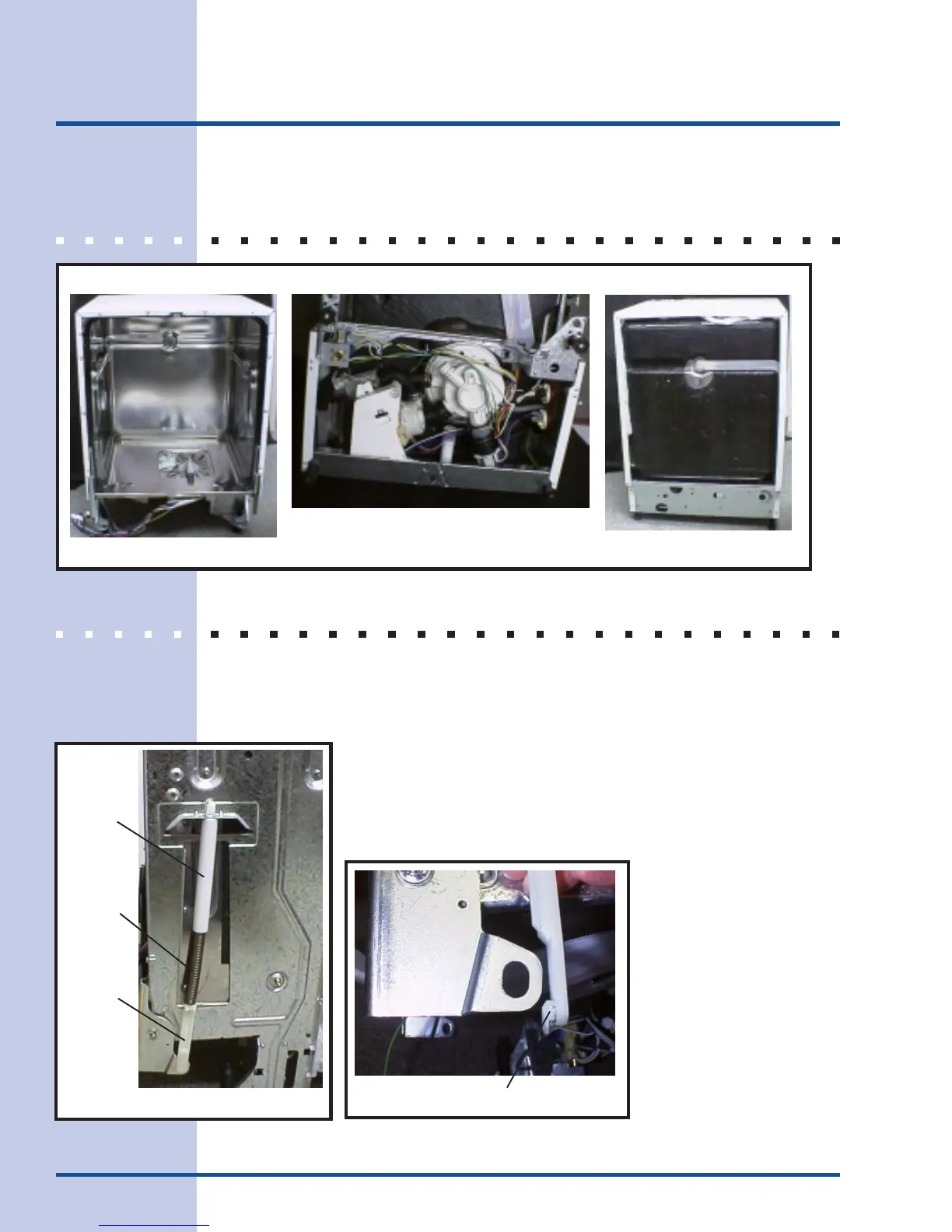

Figure 34
Front of cabinet
Figure 35
Bottom of dishwasher
Figure 36
Back of cabinet
Spring
glide
Spring
Spring
rod
Figure 37
End of spring rod goes into hinge
Figure 38
