24
SERVICE & DISASSEMBLY
UPPER SPRAY ARM
1. The center of the upper spray arm is a locking mount.
2. Turn upper spray arm and mount counterclockwise to remove. (See Figure
28)
3. To reinstall upper spray arm, line up locking posts in center mount with
locking tabs on upper spray arm support. Turn clockwise until it locks
securely.
LOWER SPRAY ARM
1. Remove lower rack.
2. Lower spray arm snaps onto volute cover.
3. Lift arm to remove.

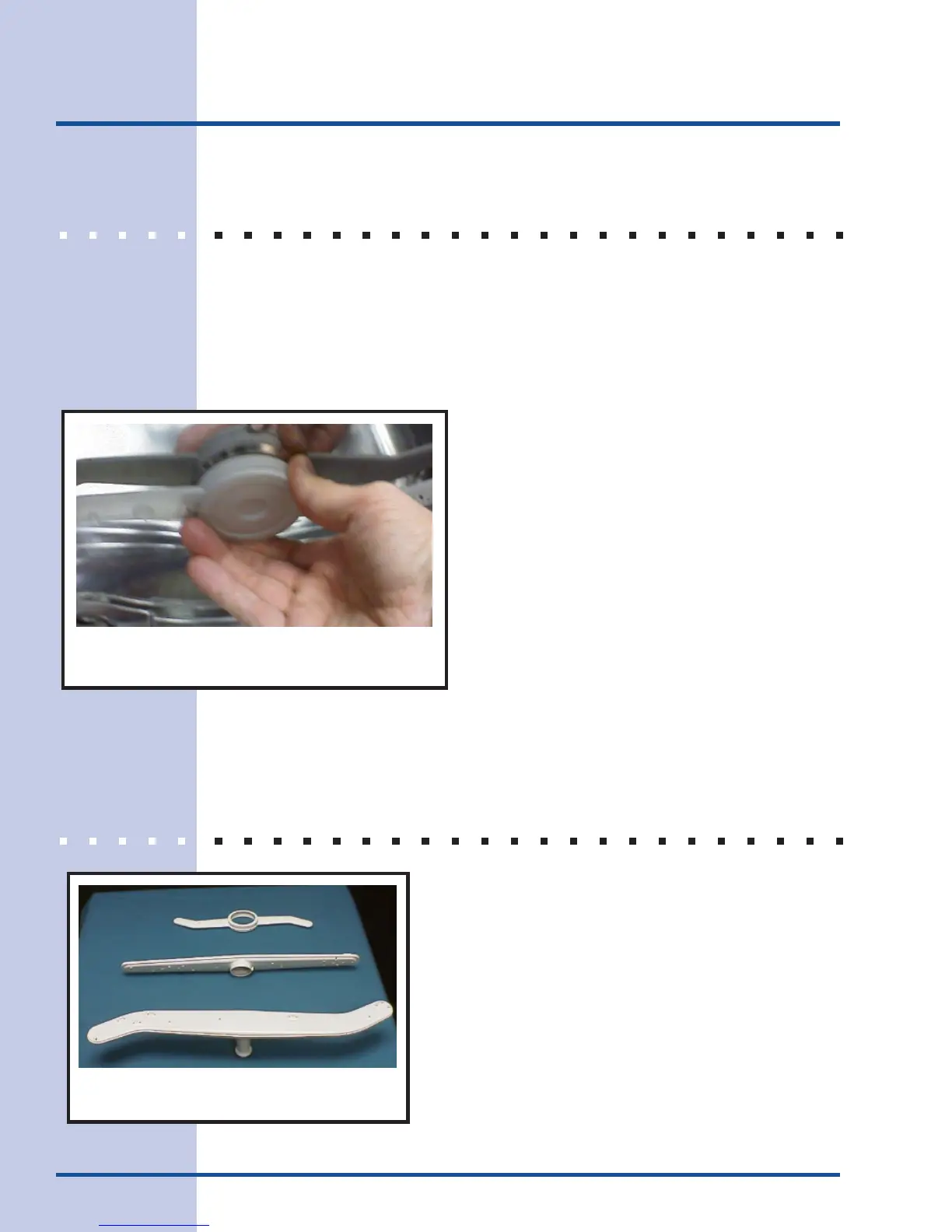

Figure 28
Turn center of spray arm to remove
All 3 dishwasher spray arms
Figure 29
