18
CYCLE, SYSTEMS & COMPONENTS
Checking the Soil Sensor
· While in idle mode, simultaneously press and hold Heavy Wash and Start /
Cancel buttons.
- This activates the sensor value test.
- If a number does not display, continue with the test.
· Disconnect dishwasher from power supply.
· Check soil sensor circuit at control.
- A resistance reading should be taken between P2-1 black and P2-7 white
at the control for the emitter.
- A resistance reading should be taken between P2-2 red and P2-7 white at
the control for the detector.
DRAIN PUMP
This dishwasher contains an independent drain
pump. It is of a wet rotor design to prevent leaks.
The drain pump is mounted directly to the rear of
the sump. The pump cover can be removed for
cleaning. The discharge end of the pump has a
check valve to prevent water and odors from
entering the dishwasher from the house drain
system. The intake of the pump is connected to
the sump by a short connecting hose. The pump
is delivered as a complete assembly.
Checking the Drain Pump
· A service test can be performed to test all
functions of the dishwasher, including the
drain pump.
- The service test is covered in section
“Test for the Control”.
If the Drain Pump Does Not Operate
· Disconnect dishwasher from power supply.
· The location of the drain pump requires that you check the circuit at the
control.
- Check between P3-6 brown and P3-8 white.
· The resistance should read 26 ohms.

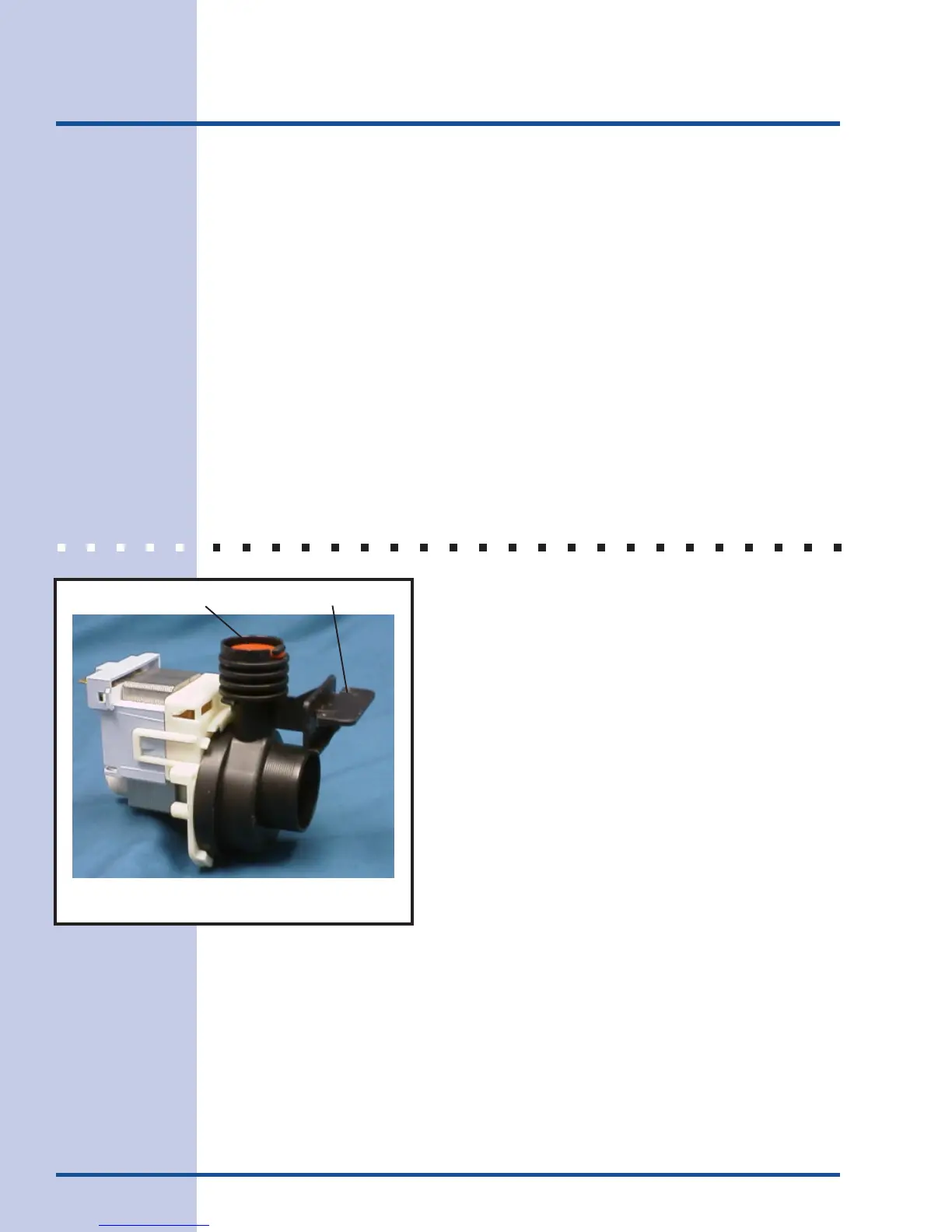

Check valve
Mounting tab
Drain pump
Figure 17
