33

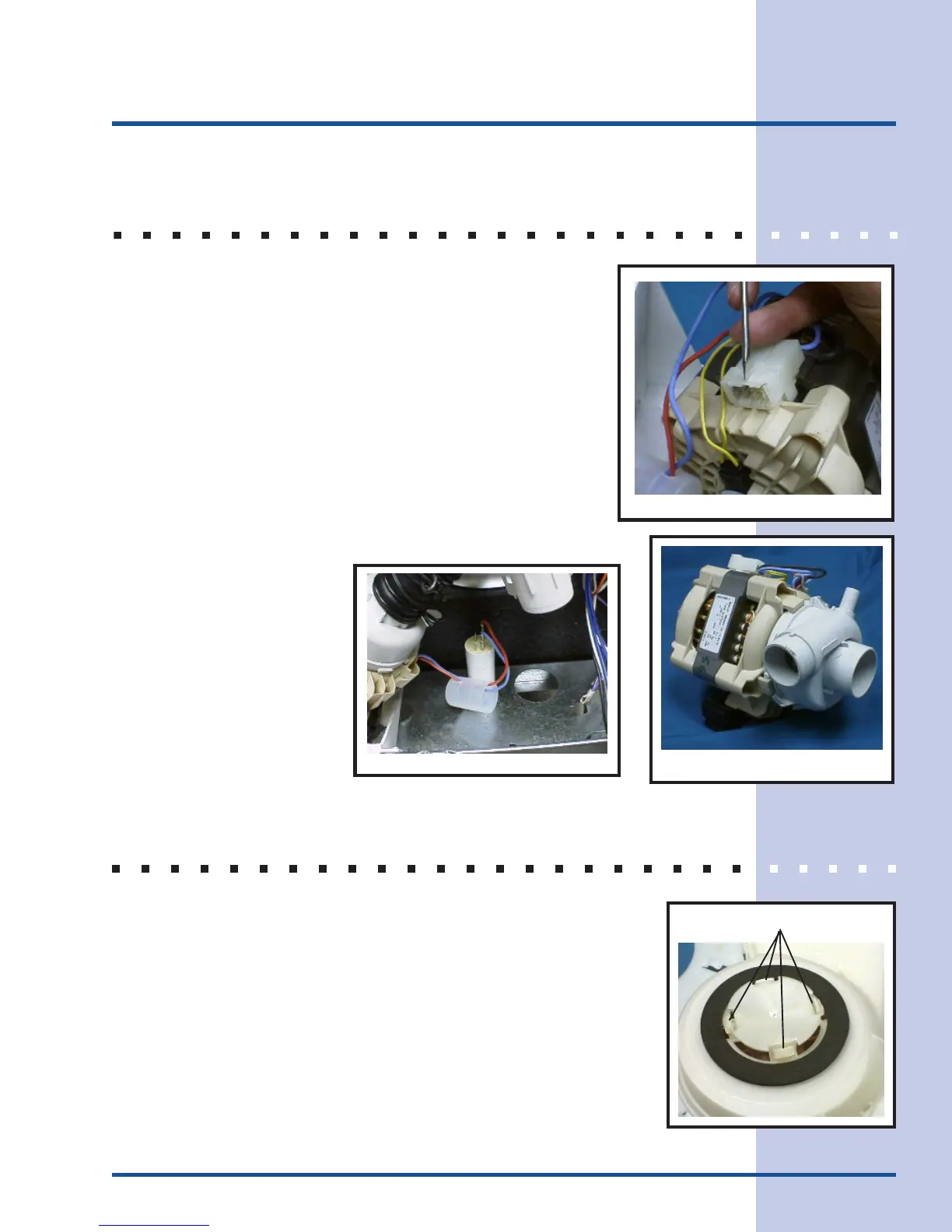

SERVICE & DISASSEMBLY
CAPACITOR
1. Disconnect dishwasher from power and water supplies.
Remove drain line.
2. Remove dishwasher from countertop.
3. Lay dishwasher on its back on a protective pad.
4. Capacitor is mounted to back frame of the unit using a
mounting nut.
5. Remove cap and wires.
6. Reinstall using reverse procedure.
BLOWER ASSEMBLY
1. Remove dishwasher cabinet. See CABINET REMOVAL for
detailed instructions.
2. After cabinet is removed, set unit upright.
3. From inside of the tub, depress retaining clips. (See Figure
54.) Blower assembly is removed from top outside of tub.
4. Remove blower from side duct and remove wires from blower
motor.
5. Reverse procedure to reinstall.
Motor running capacitor
Figure 51
Figure 52
Figure 50
Lock for disconnect
Locking tabs
Figure 54
