7.6 Single-Phase Induction Motor
WARNING
When replacing the Motor, refer to the code shown in the list of spare parts relating to the Appliance.
7.6.1 General Characteristics
A single-phase AC current is supplied to the main winding that produces a pulsating magnetic field. The
pulsating field could be divided into two fields, which are rotating in opposite directions. The interaction
between the fields and the current induced in the rotor bars generates opposing torque.
The Motor Assembly is used to drive the Dryer Drum as well as Blower. Motor is activated from Electronic
Control Board through the Door Switch.
The Motor is equipped with Overload Thermal Protection Tripper. This ensures that the Motor is switched OFF if
any thermal overload occurs.

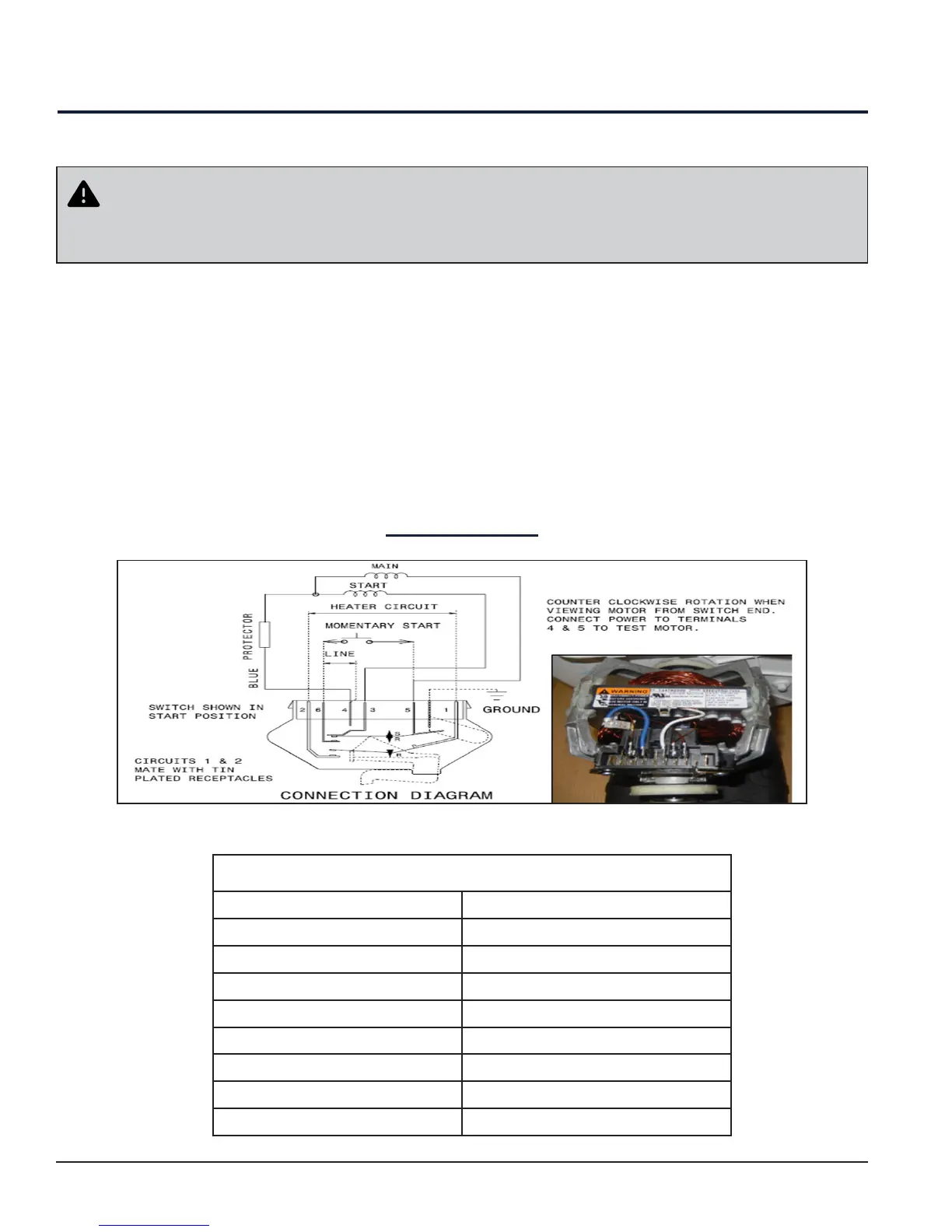

Connection Diagram
Performance Specifications
Voltage-cycles 115 V-60 Hz
Breakdown torque, ft-oz 26.0 nom
Locked rotor current, amps 46.5 max.
Full load torque, ft-oz 16.2 nom
Full load current, amps 5.1 nom
Full load, watts 400 nom
Full load, rpm 1685 nom
Horse power 1/3 hp output
Locked rotor trip time 3-6 secs
Electrical Components (For Models 617, 517 and 417 Series)
