Electrolux EFMG417SIW - 14. Motor Assembly Accessibility

37

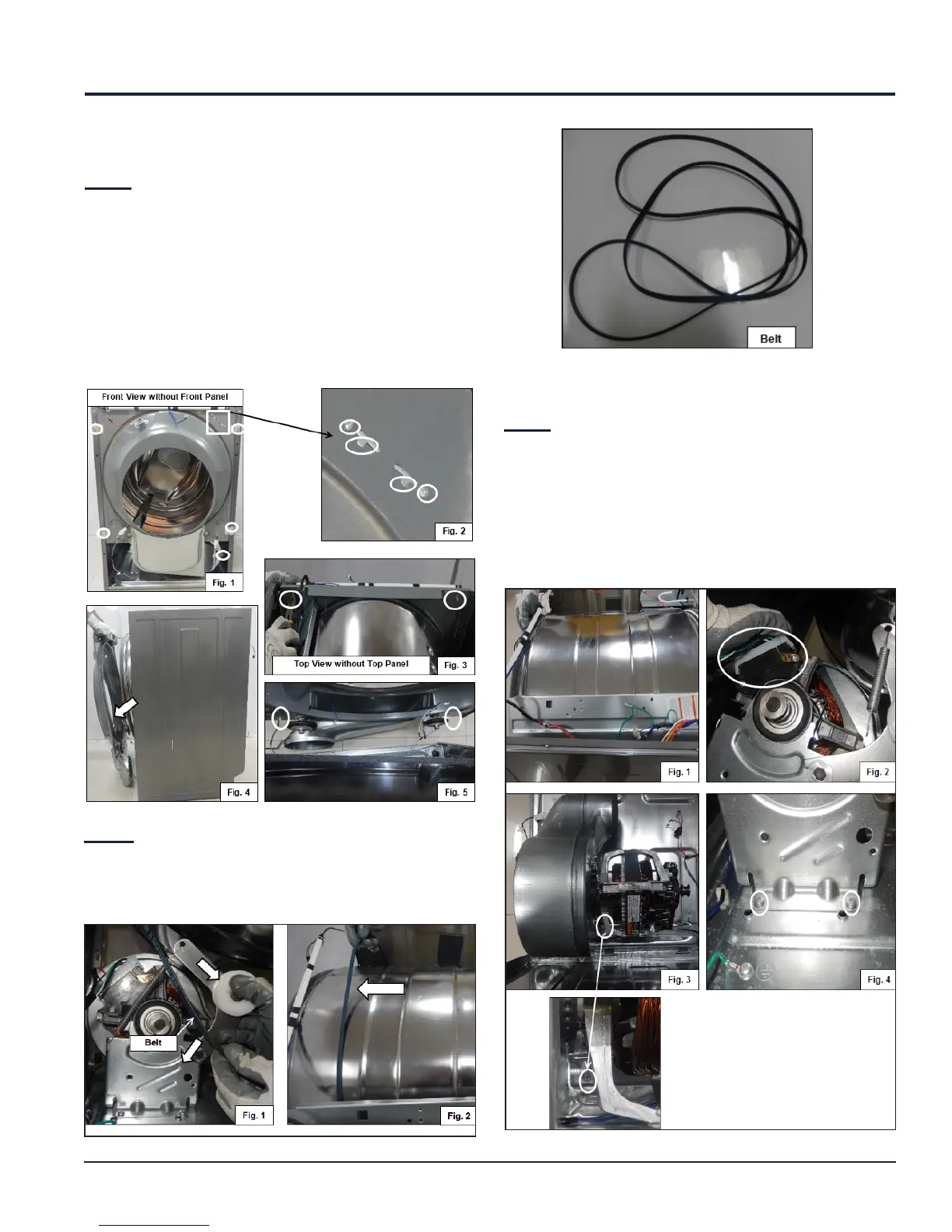

14.1 Belt Accessibility
Step: 1
After removing Front Panel, remove the Front Bulk
Head screws (See Fig. 1), Air Duct screw (See Fig. 1)
and Electronic Control Board bracket mounting snaps
and screws (See Fig. 2). Remove the wiring clips (See
Fig. 3). Lift the Front Bulk Head to release from the
snaps which fit with the Side Panels and move the
Front Panel Head away from the unit a few inches, as
shown (See Fig. 4). Remove wiring clips (See Fig. 5)
and remove Front Bulk Head.
Step: 2
Remove the belt from Idler Arm Assembly as shown
(See Fig. 1) and slide the belt as shown (See Fig. 2) to
remove it from the Dryer.
14.2 Motor Accessibility
Step: 1
Remove the Drum from the Dryer (See Fig. 1) and
unplug the connectors from the Motor Assembly (See
Fig. 2). Remove the screws from the Motor Bracket
from Top View of Dryer (See Fig. 3), and screws from
Rear Side of the Dryer (See Fig. 4). Then slide the
snap of bracket which fits with Base Panel.
14. Motor Assembly Accessibility
