Electrolux T5350 - Page 55

Service Manual
55

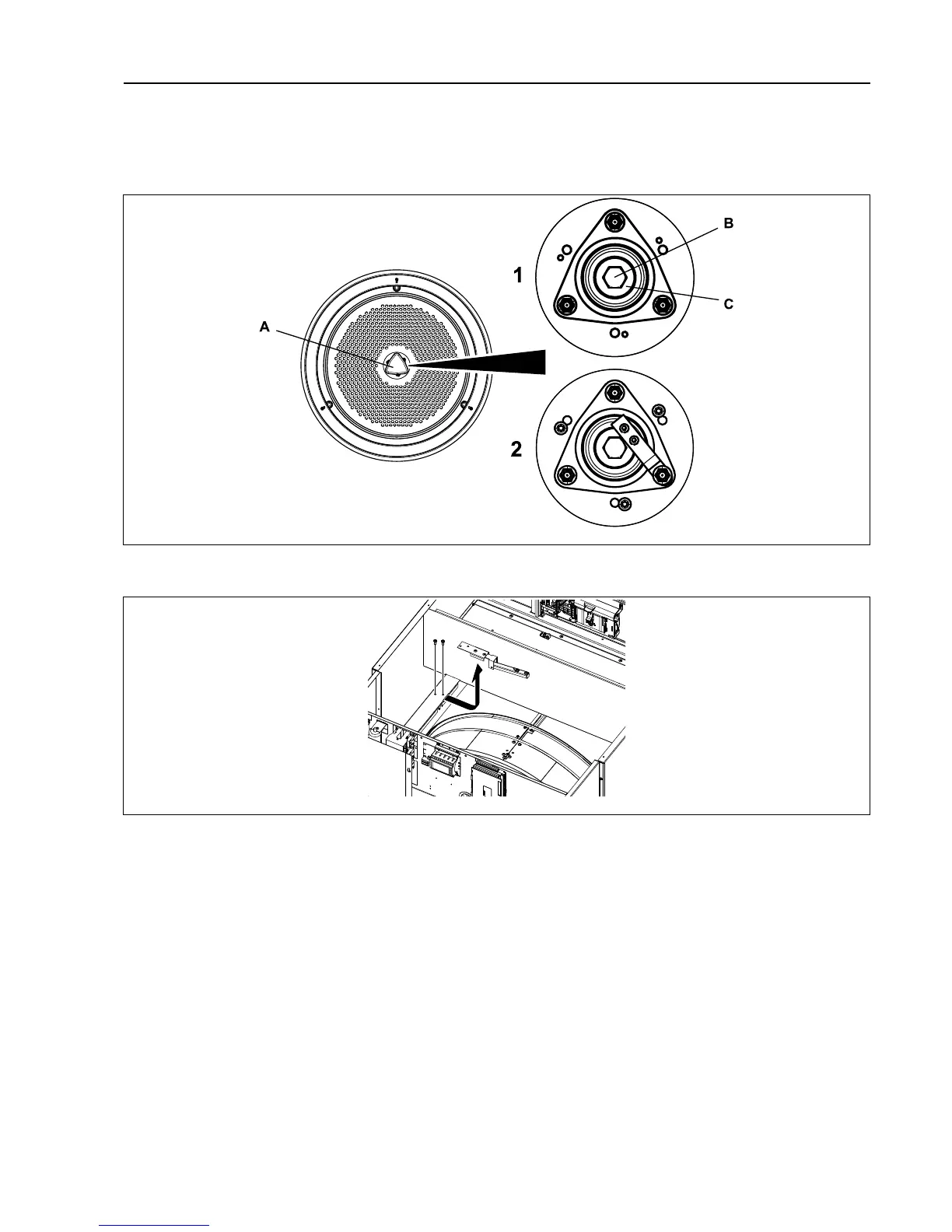

Remove the screws and the bearing house (A).
1. Shows a machine without RMC. Remove the bolt (B) and the washer (C).
2. Shows a machine with RMC. Loosen the screw and pull the RMC flange to the side in order to remove the bolt
(B) and the washer (C).
fig.7231A
Demount the RMC with arm.
fig.7901
