56
Service Manual
Carefully lift out the drum.
Put the drum on the floor.

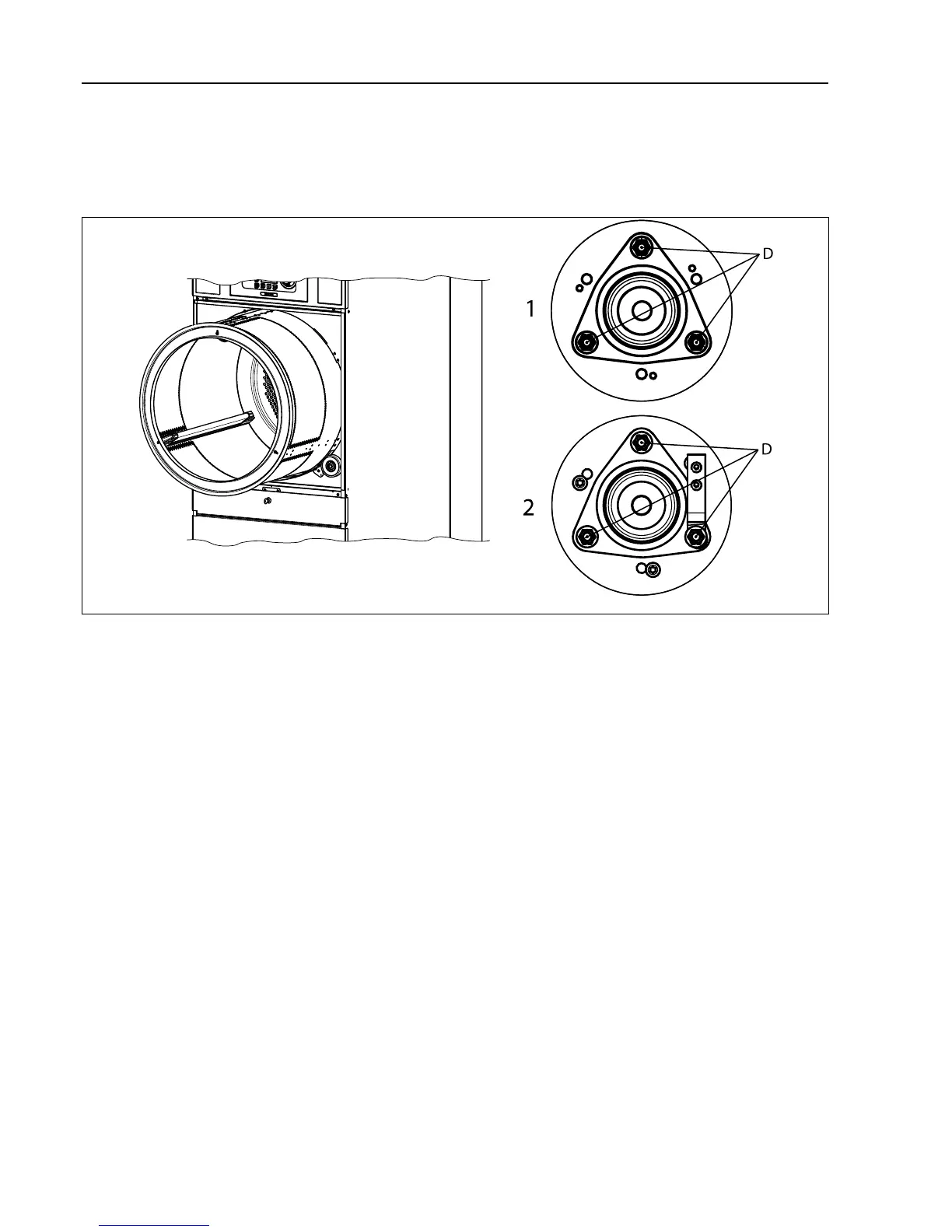

Remove the bolts and washers (D) and mount the new bearing. Use tightening torque 5 Nm.
1. Shows a machine without RMC.
2. Shows a machine with RMC.
fig.7230A
Remount the RMC with arm.
Fasten the bolt and the washer and remount the bearing house. Use tightening torque 20 Nm ± 3 Nm.
On machines with RMC; pull the RMC flange back in position and tighten the screw. Use tightening torque 5 Nm ±
0.5 Nm.
Fasten the belt and make sure the belt is in position. Fasten the belt tensioner.
Remount the rear panel and the top panel.
