Motor
37

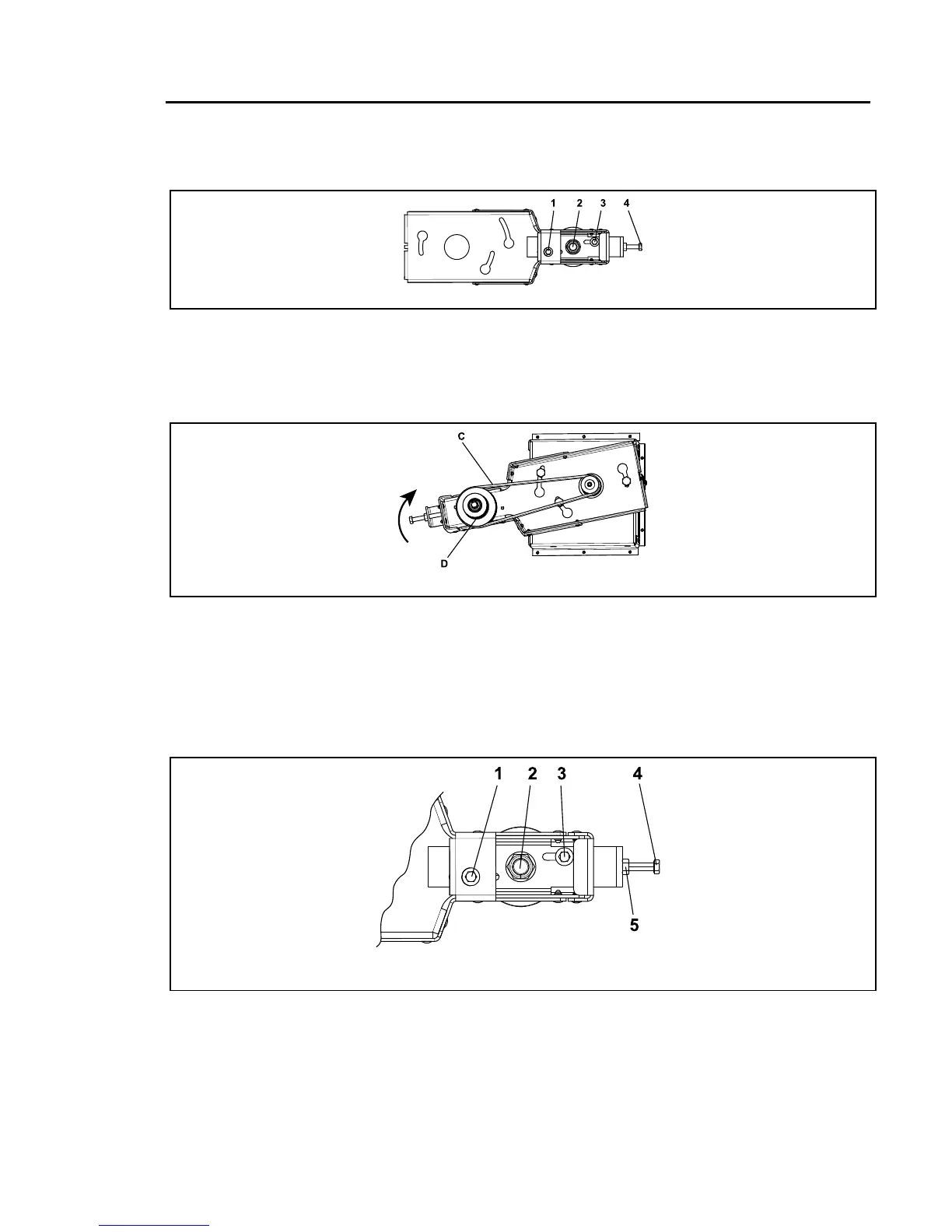

Inordertoloosenthebelt,rstloosenthefourscrewsabit.
47
1 2 3 4
g.490377800
Loosenthebelt(C)fromthe“motorarm”.
Demountthemotorpulley(D)bylooseningthescrew(2).
48
C
D
g.7224C
Mountthenewmotorpulleyandputthebeltinposition(C)andtightenthescrews.Startby
tightening1and3abit.Thighten4andcheckthebelttensionwithafrequencymeaterorsimilar.
Thefrequencyshallbe80Hz±5.Adjustwith4ifnecessary.Thentighten2withtightening
torque80Nm±5andnally1and3withtighteningtorque6Nm±1againwhenallisinposition.
Checkthat5istightened.
49
1 2 3 4
5
g.490377800A
