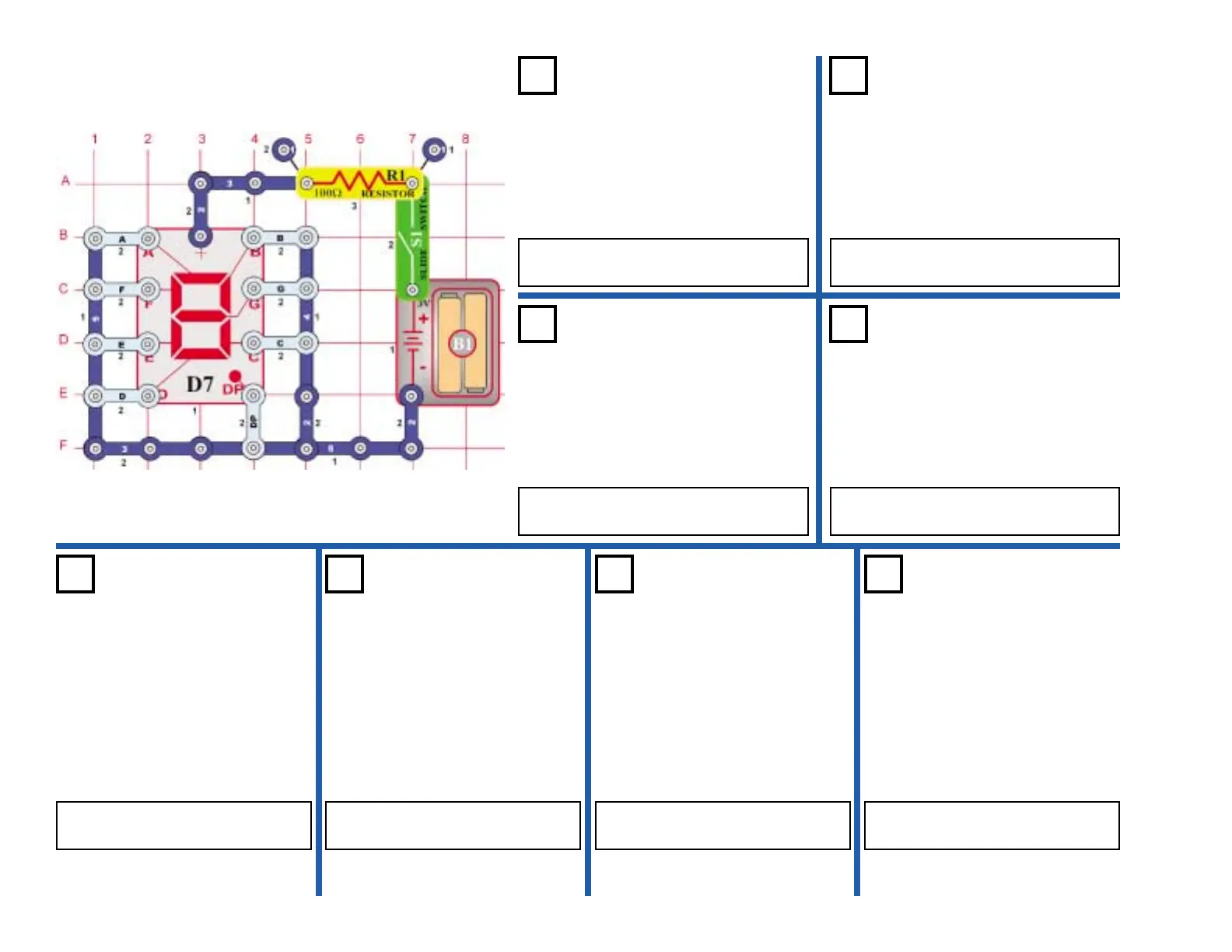

Project #363
OBJECTIVE: To configure the seven
segment to display the capital letter “F”.
Connect A, E, F, & G to the negative of
the battery.
Display Capital
Letter “F”
OBJECTIVE: To configure the seven
segment to display the capital letter “H”.
Connect B, C, E, F, & G to the negative
of the battery.
Display Capital
Letter “H”
OBJECTIVE: To configure the seven
segment to display the capital letter “P”.
Connect A, B, E, F, & G to the negative
of the battery.
Display Capital
Letter “P”
OBJECTIVE: To configure the seven
segment to display the capital letter “S”.
Connect A, F, G, C, & D to the
negative of the battery.
Display Capital
Letter “S”
Project #364
Project #365 Project #366
Project #367
OBJECTIVE: To configure the
seven segment to display the capital
letter “U”.
Connect B, C, D, E, & F to the
negative of the battery.
Display Capital
Letter “U”
Project #370
OBJECTIVE: To configure the
seven segment to display the
decimal (DP).
Connect DP to the negative of the
battery.
Display “.”
Project #369
OBJECTIVE: To configure the
seven segment to display the
capital letter “E”.
Connect A, D, E, F, & G to the
negative of the battery.
Display Capital
Letter “E”
Project #368
OBJECTIVE: To configure the
seven segment to display the
capital letter “C”.
Connect A, D, E, & F to the
negative of the battery.
Display Capital
Letter “C”
