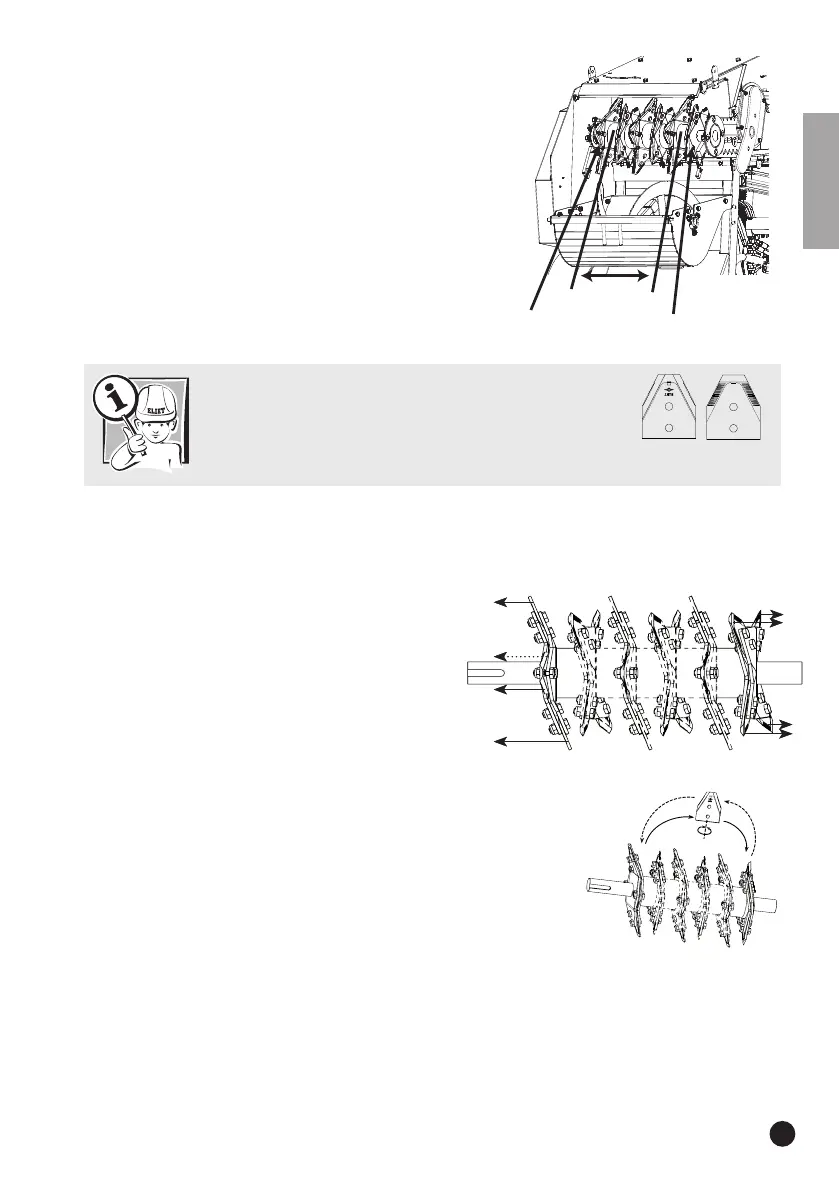

Blade group 1: The two farthest blade disks belong to this
group. (G1)
Blade group 2: This group contains 4 blade disks that are
enclosed in-between the two farthest blade disks. (G2)
For your information
Each blade has two sharp sides (image)
Front side (F) : The side with the chamfered cutting edge.
Back side (B) : The side with the clearly visible tooth profile.
A Reversing the blades of group 1
Rule: Ensure that the blades from blade group
1 are always facing with their back side (B) to-
wards the side walls of the shredding chamber.
Perform the following steps to consistently apply this rule:
• Remove a blade from the left-hand side, rotate it through 180°
and fit it in the same position, but to the right-hand disk. Rotate
(180°) the blade previously removed from the right-hand blade
disk, and fit it in the empty space in the left-hand blade disk.
Repeat this procedure for each blade (8 x) of group 1.
• Always clean the blades and blade holders before reinstalling
them.
