180°
(1)
V
V
V
V
(2)
58
English

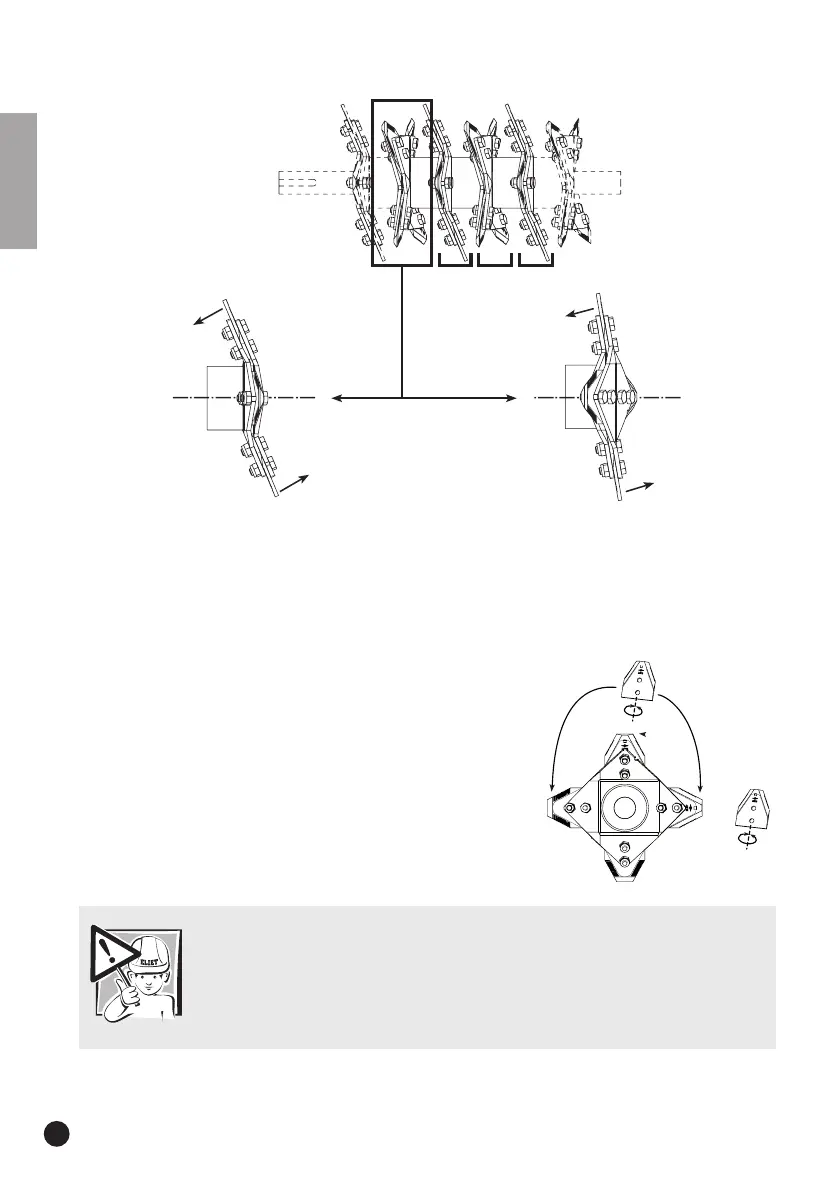

B Reversing the blades of group 2
Regel : Rule: Every blade disk has four blade positions. The blades are positioned at an angle for
two positions (1) and the blades are approximately straight for two positions (2). The front side
(F) of the blade must always be directed towards the axis line of the rotor for the slanted blades.
One blade will point (F) the front side to the right and the other will point (F) the front side to
the left for the straight blades.
Perform the following steps to consistently apply this rule:
• Disassemble two blades that are diametrically opposite
each other. Rotate them through 180° and change them
over. Do the same with the two remaining blades. Re-
peat this operation for the three remaining blade disks
of group 2.
• Always clean the blades and blade holders before rein-
stalling them.
Caution:
When fitting the blades, always position the nuts on the left-hand side of the
blade plate. By applying this installation method, the nuts will be automatically
tightened during shredding by the turning direction of the blade shaft. As a
reminder: “Always position the nuts on the belt pulley side.”
