Electromagnetic flowmeter FLONET FN20xx.1
ELIS PLZEŇ a. s., Luční 425/15, 301 00 Plzeň, Czech Republic, Phone: +420/377 517 711, Fax: +420/377 517 722 Es90420K/c

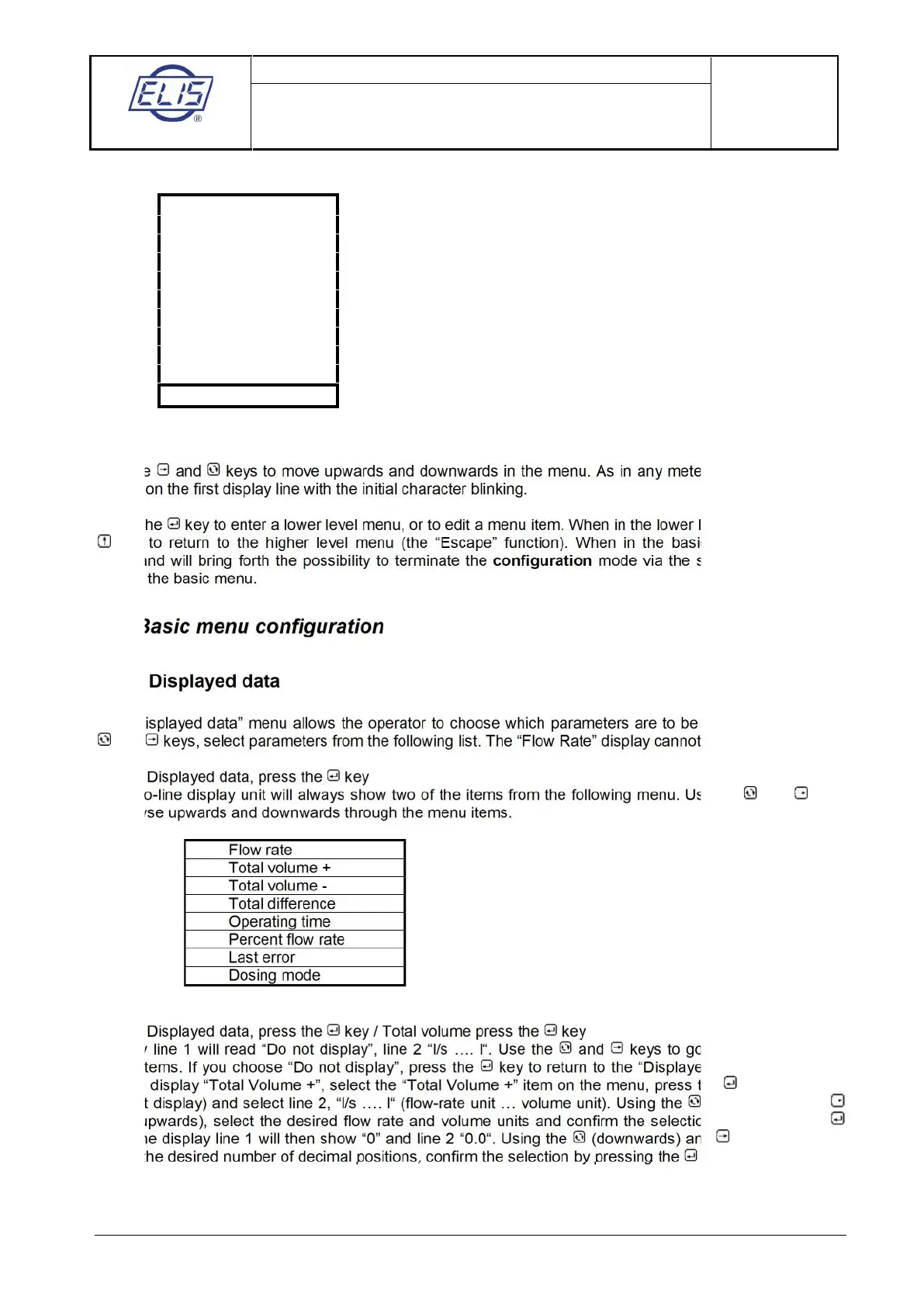

The two-line display will always show two of the following basic menu options:
Displayed data
Samples
Analog output
Output functions
Electrode clean
Serial line
Production data
Dose setting
Zero setting
100 percent
Exit
Display reading: the basic menu options
Use the and keys to move upwards and downwards in the menu. As in any meter menu, the selected
item is on the first display line with the initial character blinking.
Press the key to enter a lower level menu, or to edit a menu item. When in the lower level menu, press the
key to return to the higher level menu (the “Escape” function). When in the basic menu, the Escape
command will bring forth the possibility to terminate the configuration mode via the selection of the “Exit”
item of the basic menu.
7.1. Basic menu configuration
7.1.1. Displayed data
The “Displayed data” menu allows the operator to choose which parameters are to be displayed. Using the
and keys, select parameters from the following list. The “Flow Rate” display cannot be cancelled.
Menu: Displayed data, press the key
The two-line display unit will always show two of the items from the following menu. Use the and keys
to browse upwards and downwards through the menu items.
Flow rate
Total volume +
Total volume -
Total difference
Operating time
Percent flow rate
Last error
Dosing mode
Menu: Displayed data, press the key / Total volume press the key
Display line 1 will read “Do not display”, line 2 “l/s …. l“. Use the and keys to go up and down in the
menu items. If you choose “Do not display”, press the key to return to the “Displayed data” menu. If you
wish to display “Total Volume +”, select the “Total Volume +” item on the menu, press the key, skip line 1
(Do not display) and select line 2, “l/s …. l“ (flow-rate unit … volume unit). Using the (downwards) and
keys (upwards), select the desired flow rate and volume units and confirm the selection by pressing the
key. The display line 1 will then show “0” and line 2 “0.0“. Using the (downwards) and keys (upwards),
select the desired number of decimal positions, confirm the selection by pressing the key and return to the
“Displayed Data” menu.
