36
SECTION 2: MACRODUCT ADVANCED SYSTEM SETUP

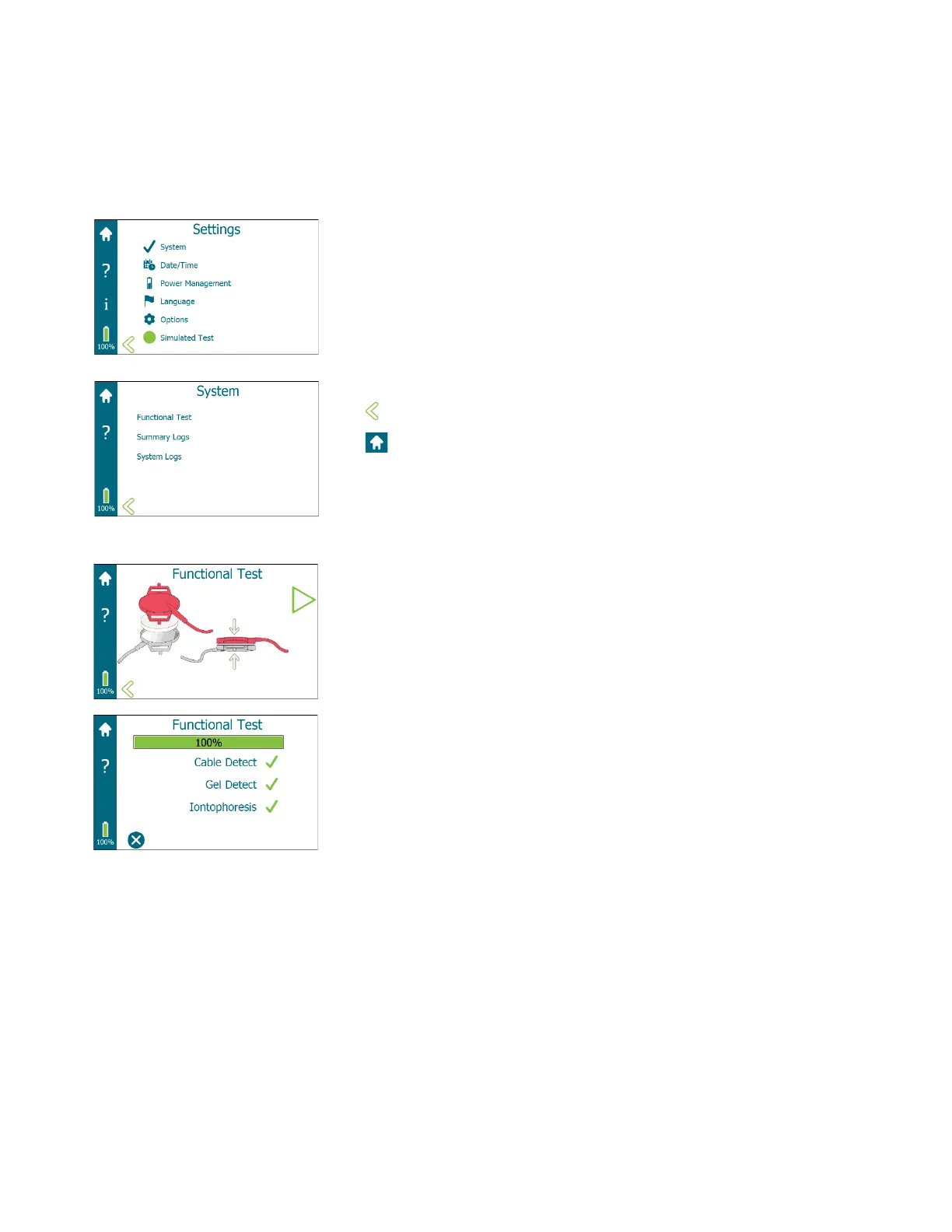

2.5 Settings Screen
System Screen
Select System from the Settings screen.
From the System screen, the operator can do the following:
• Perform a Functional Test
• View Summary Logs
• View System Logs
Tap the desired selection to access that particular screen.
Tap to return to the Settings screen.
Tap to return to the Home screen.
The Functional Test
The Functional Test combines the testing of the electrode cable assembly
with the cable detect circuitry, Pilogel detect circuitry, and iontophoresis
circuitry of the device.
See Section 5.1 Troubleshooting for instructions on performing the
Functional Test.
