SECTION 5: TROUBLESHOOTING AND MAINTENANCE
5.1 Troubleshooting

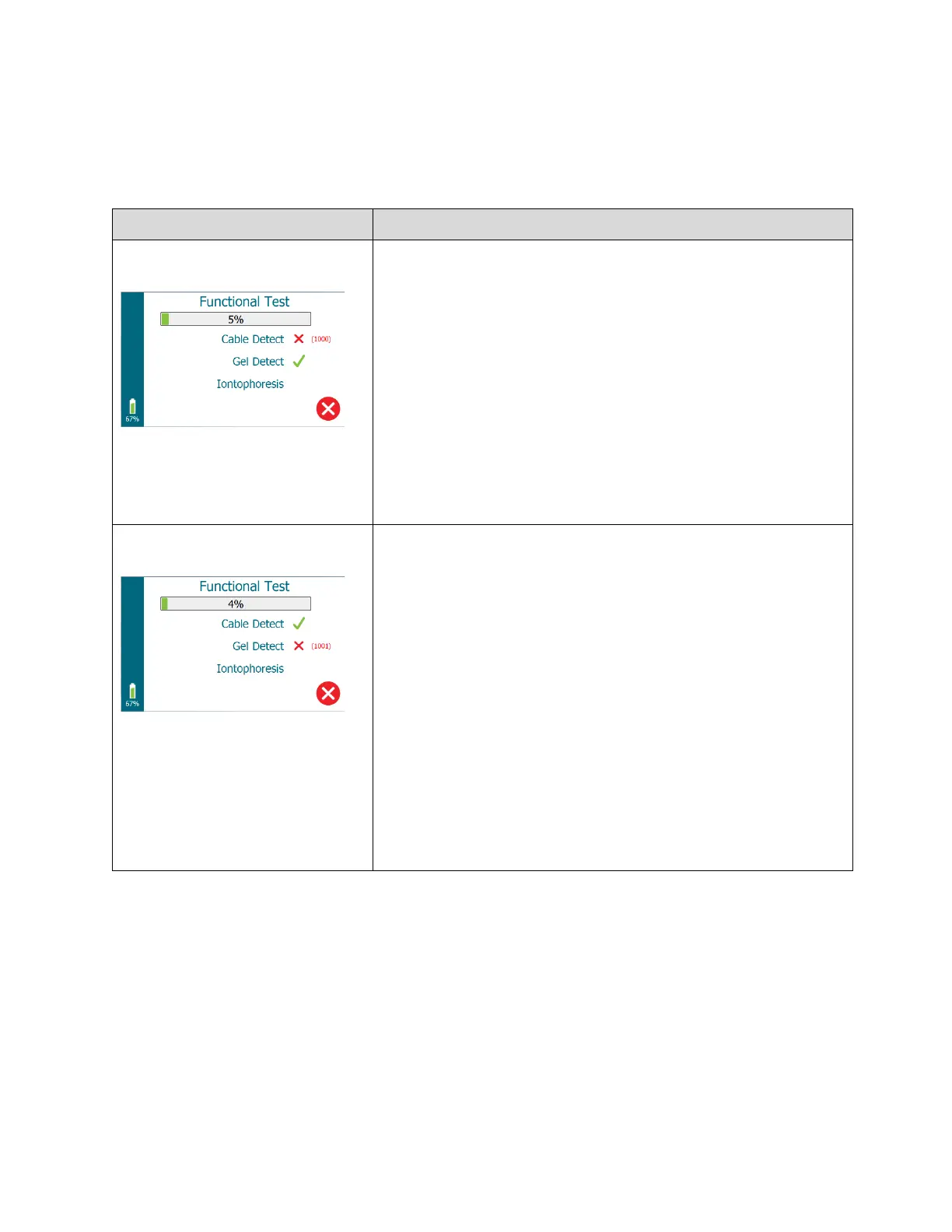

Table 7: Functional Test Troubleshooting and Diagnosis
Functional Test Symptom Probable Cause/Solution
Cable Detect fails
Error 1000
Probable Causes:
The electrode cable assembly was not plugged into the device.
Problem with the electrode cable assembly.
Problem with the cable detect circuit in the device.
Possible Solutions:
Ensure the electrode cable assembly is plugged into the device.
Try disconnecting and reconnecting the electrode cable.
If another electrode cable assembly is available, try using a different
cable.
Inspect lead wires for breaks or cracks in the insulation.
Repeat the functional test multiple times trying the possible solutions.
If the problem persists, contact ELITechGroup for further instructions.
Gel Detect fails
Errors 1001, 1002, or 1003
Probable Causes:
Pilogel discs are not in the electrodes.
Problem with the electrode cable assembly.
Problem with the Pilogel detect circuit in the device.
Possible Solutions:
Ensure a Pilogel disc is placed between the electrodes and that the
electrodes are held firmly together.
Try using a new Pilogel disc.
If another electrode cable assembly is available, try using a different
cable.
If the problem seems to be intermittent, try wiggling and pulling
gently on the wires and cable during the test.
Inspect lead wires for breaks or cracks in the insulation.
Repeat the functional test multiple times trying the possible solutions.
If the problem persists, contact ELITechGroup for further instructions.
