5.6 Labels and Nameplates
Nameplates and labels are used to identify the product and to provide details
on the specific product. Together with the product manual it specifies how
the product is certified and designed.
 The main (type) plate (see Figure 5-5, for an example of a
Q.Sonic
plus
main plate) provides information on mechanical design
conditions as well as flow related information such as meter factor
and range. If the UFM has been manufactured in accordance with
the Measuring Instruments Directive (MID) the related certificate
reference T10335 is mentioned in the top right corner of the main
plate.
 Refer to Chapter 12 MID Requirements (p.63) For more
information about MID and Environment Class specification.
 Refer to the type plate on the SPU for the applicable hazardous
area approval. This could be according to ATEX, IECEx, FM or
CSA.  Please refer to Figure 5-6 to Figure 5-9 for type plate
examples for a Q.Sonic
plus
meter.

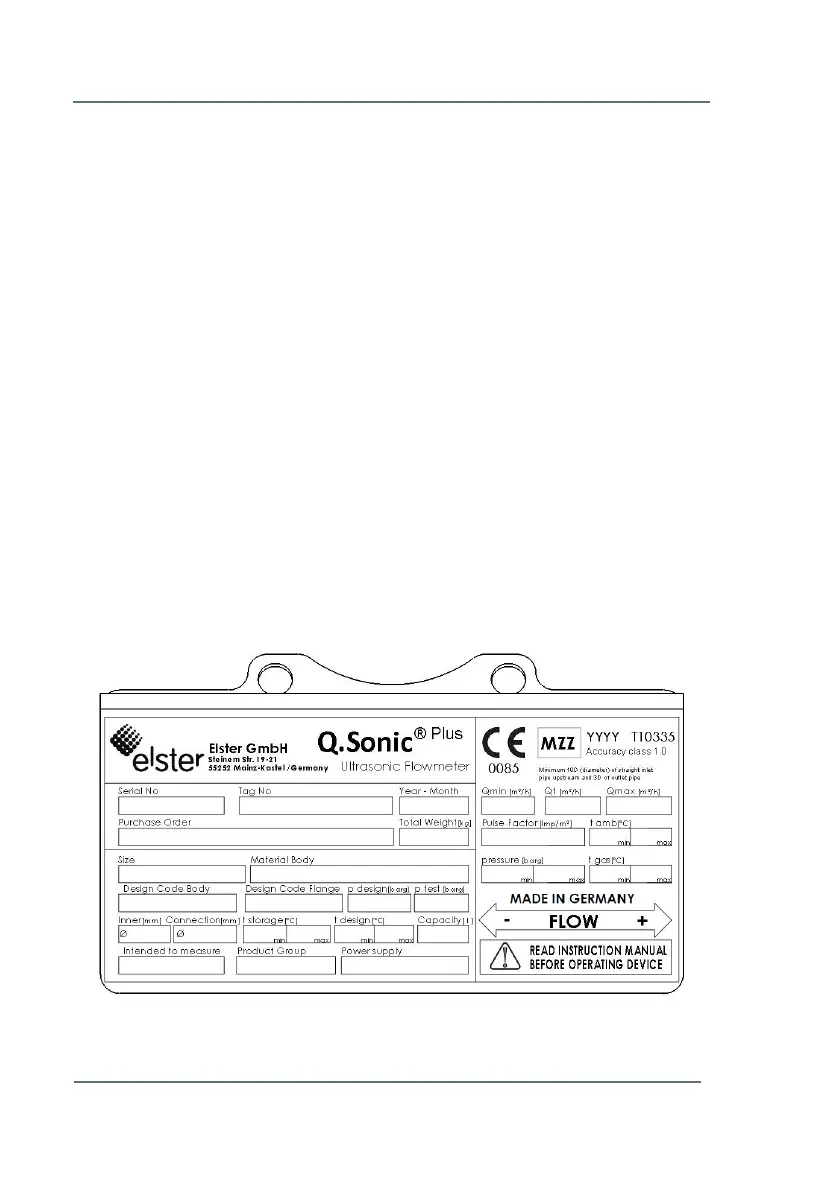

Figure 5-5: Example of a Q.Sonic
plus
Main Plate
