Chapter 3 63

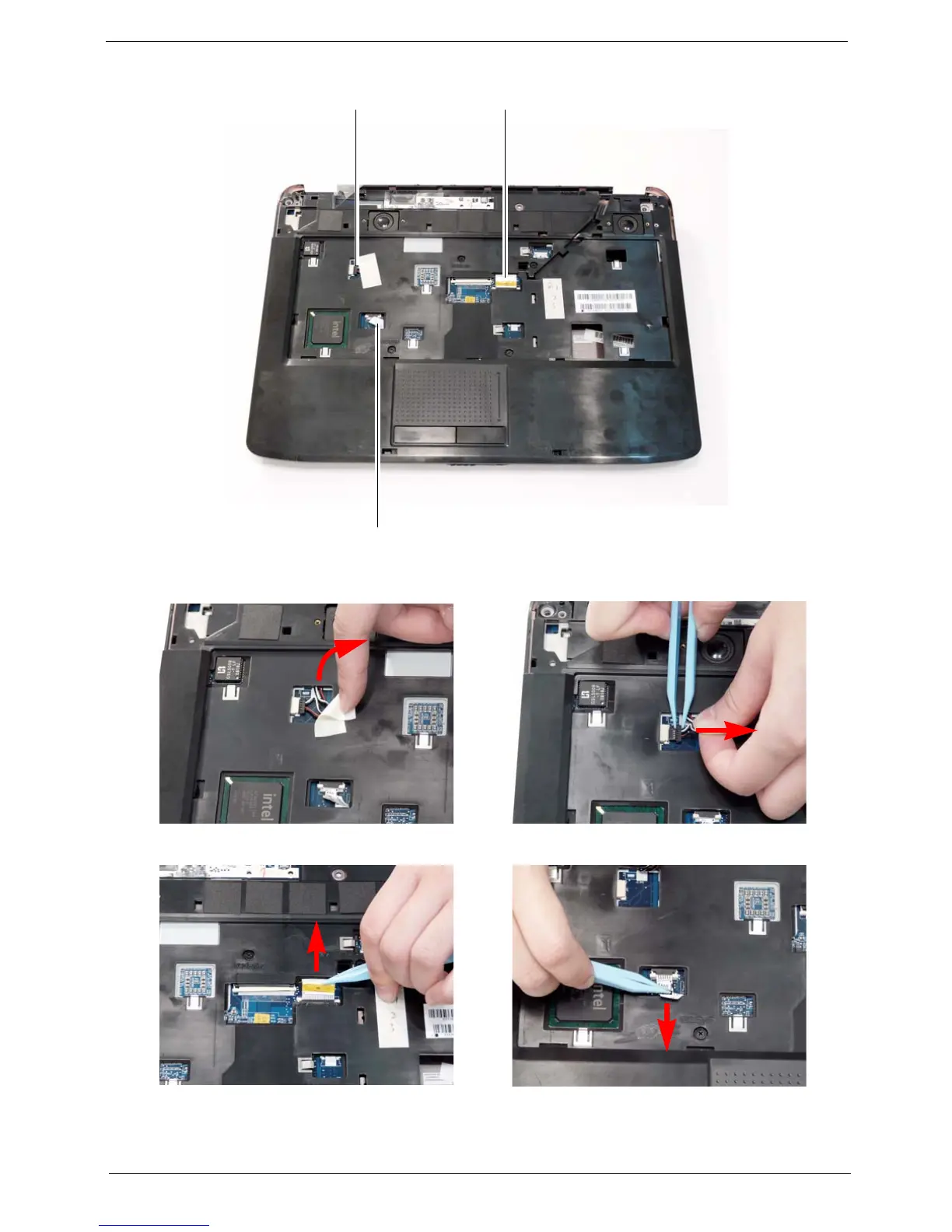

6. Disconnect the three cables from the mainboard as shown.
NOTE: Avoid pulling on the cables directly to prevent damage to the connectors.
NOTE: Use the pull-tabs on the FFC cables whenever available to prevent damage to the FFC cables.
Remove the adhesive tape to expose cable A. Disconnect A as shown.
Release the securing latches and disconnect B as
shown.
Release the securing latches and disconnect C as
shown.
A
B
C
To Next Page
