Chapter 3 81
Removing the LCD Brackets and FPC Cable
1. See “Removing the LCD Panel” on page 80.

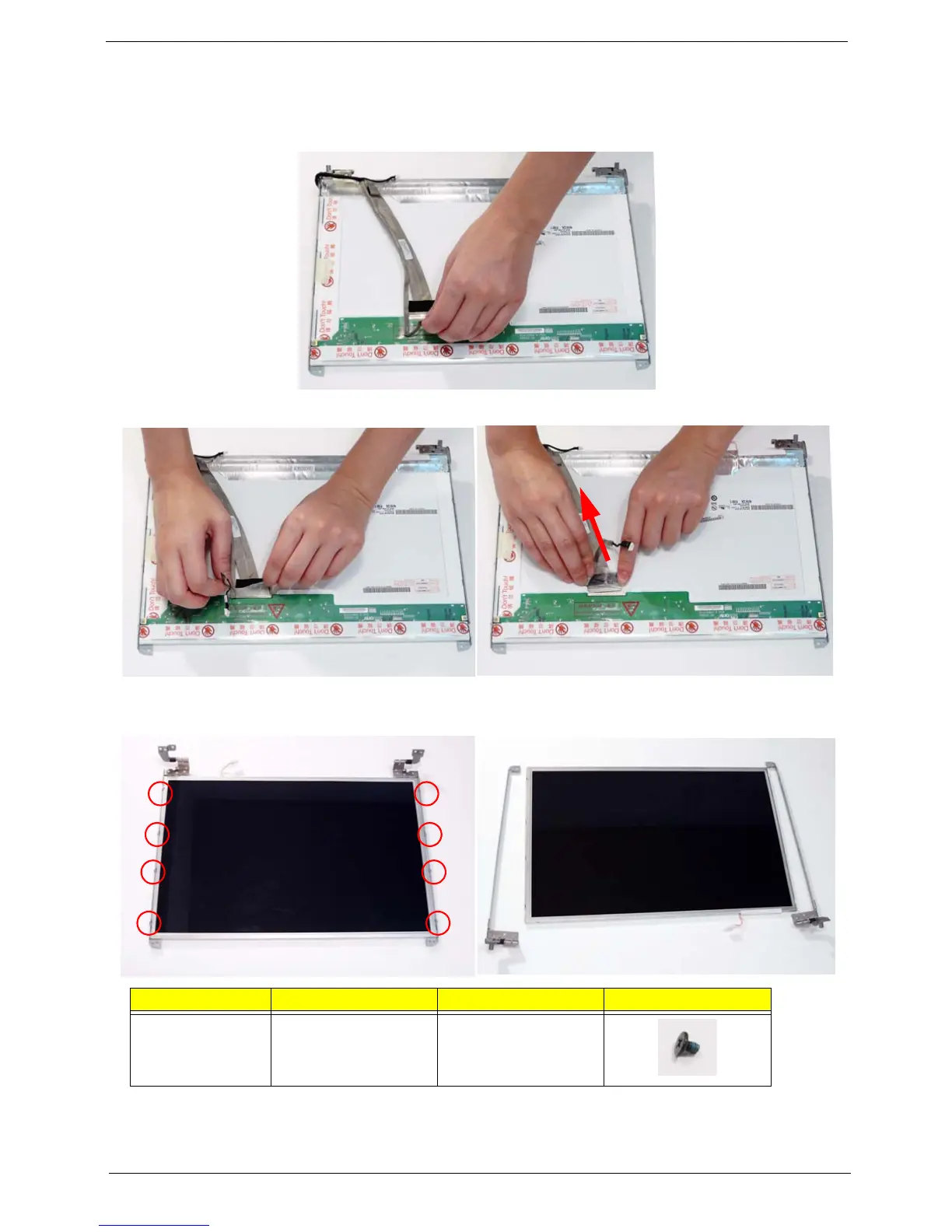

2. Turn the LCD panel over to expose the rear. Lift the camera connector clear of the panel.
3. Lift the adhesive protector and disconnect the cable from the LCD Panel.
4. Grip the FPC cable and lift upward to detach the adhesive pads and remove the cable from the panel.
5. Remove the eight securing screws (four on each side) from the LCD Panel brackets.
6. Remove the LCD brackets by pulling away from the LCD Panel as shown.
Step Size Quantity Screw Type
LCD Brackets M2*L3 8
