eMachines D720 Series - Removing the MIC Module

Chapter 3 83

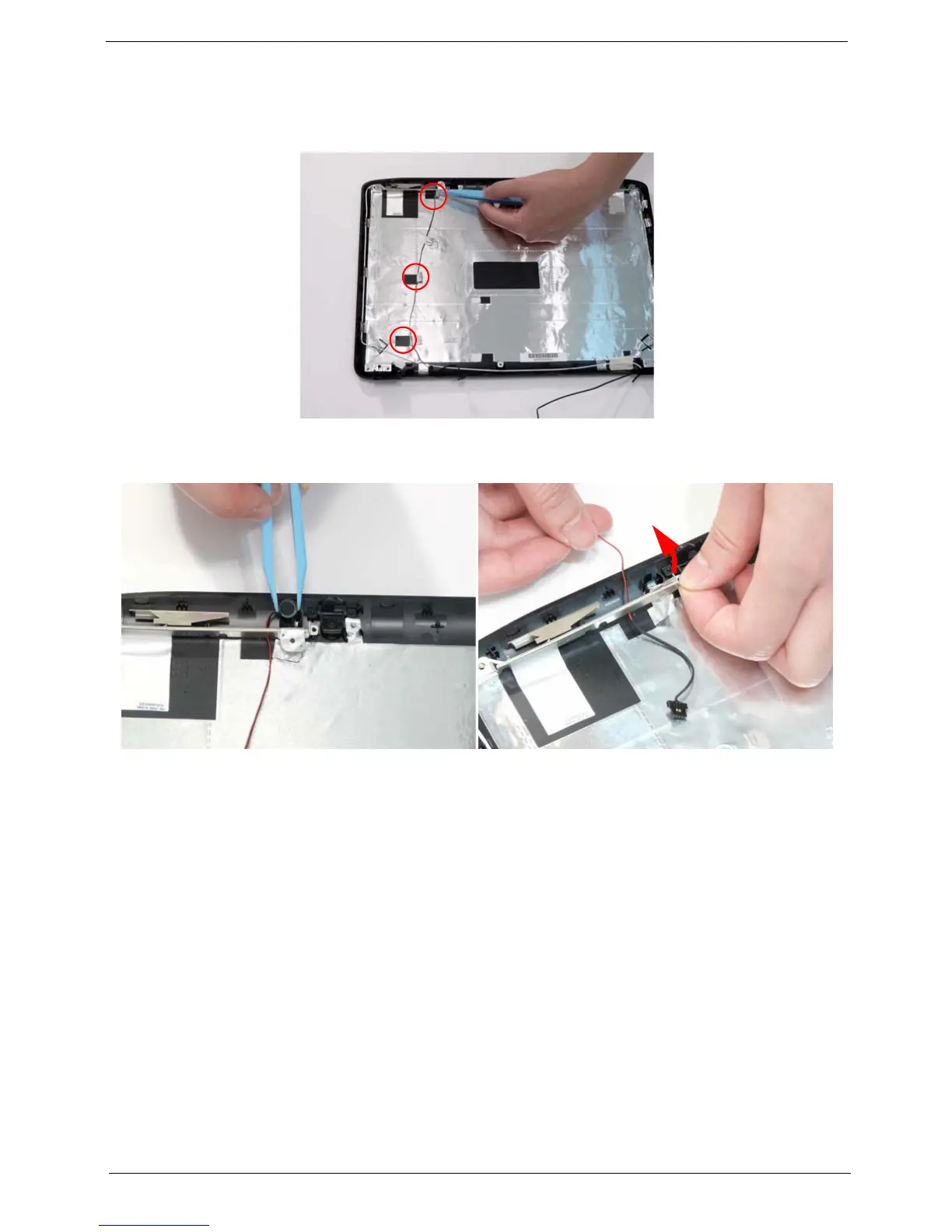

Removing the MIC Module
1. See “Removing the Antennas” on page 82.
2. Remove the strips holding the MIC Module cable in place. Ensure the cable is free from obstructions.
3. Remove the MIC cable and Module from the LCD module.
NOTE: If the left antenna is present, it may be necessary to lift the assembly to free the Mic cable.
