Removing the Power Board

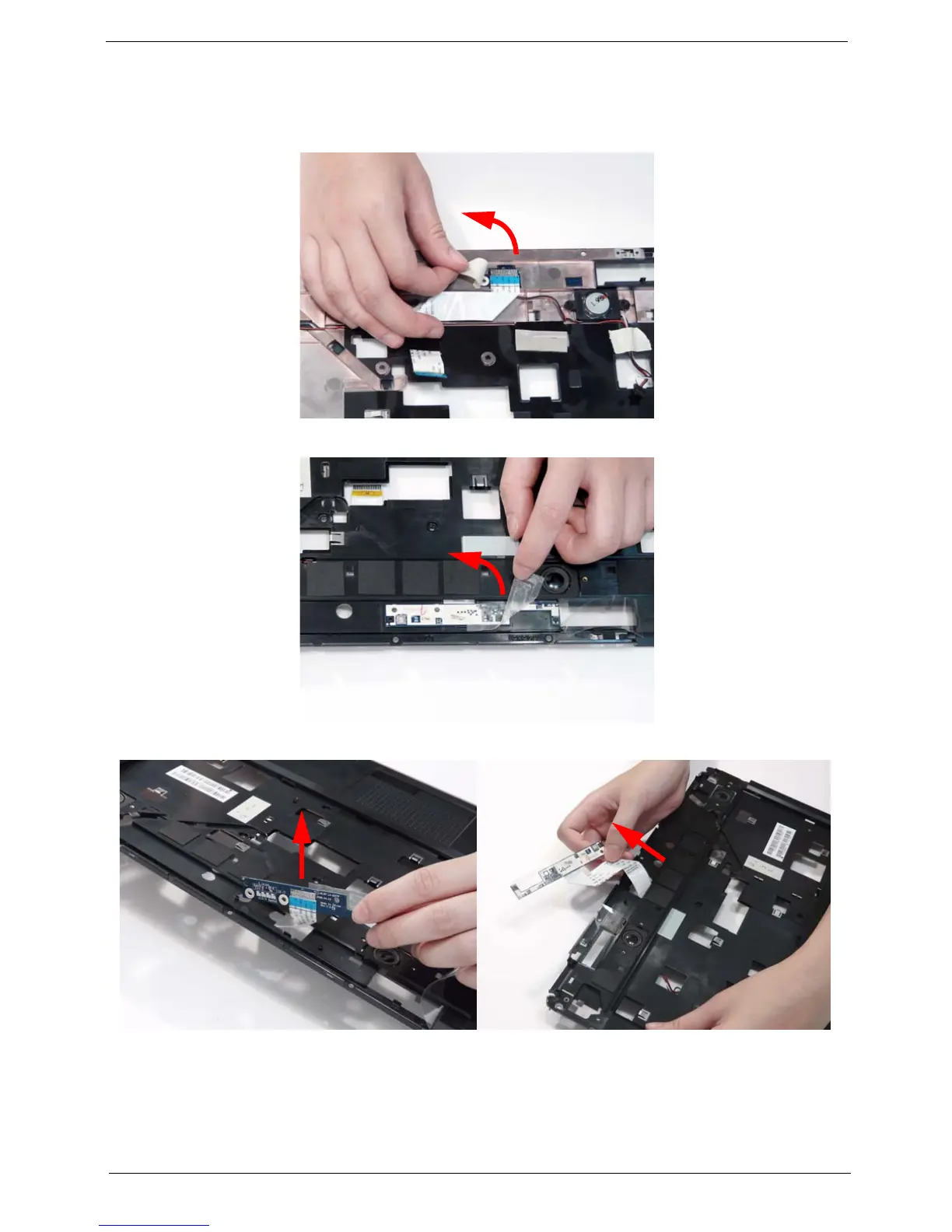

1. See “Removing the Upper Cover” on page 62.
2. Remove the adhesive tape from the Power Board cable as shown.
3. Turn the Upper Cover over. Remove the adhesive tape from the Power Board as shown.
4. Lift the Power Board away from the cover and pull the FFC cable through as shown.
