Chapter 3 87

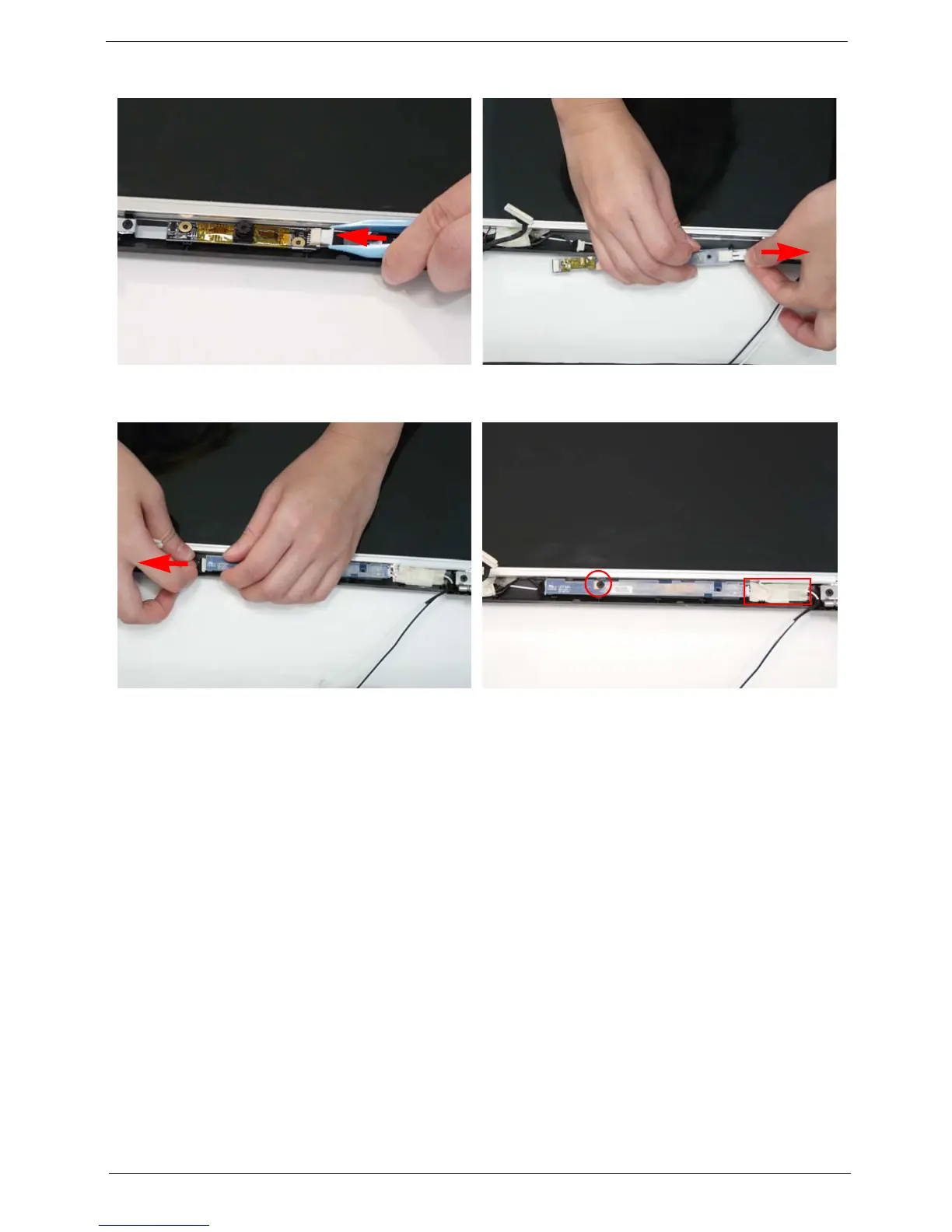

12. Connect the Camera Module cable. 13. Connect the right side inverter cable.
14. Connect the left side inverter cable and place the
inverter in the LCD module.
15. Replace the single securing screw and adhesive
tape.
