38 EMC VNX7500 Parts Location Guide
Small form-factor pluggable (SFP)

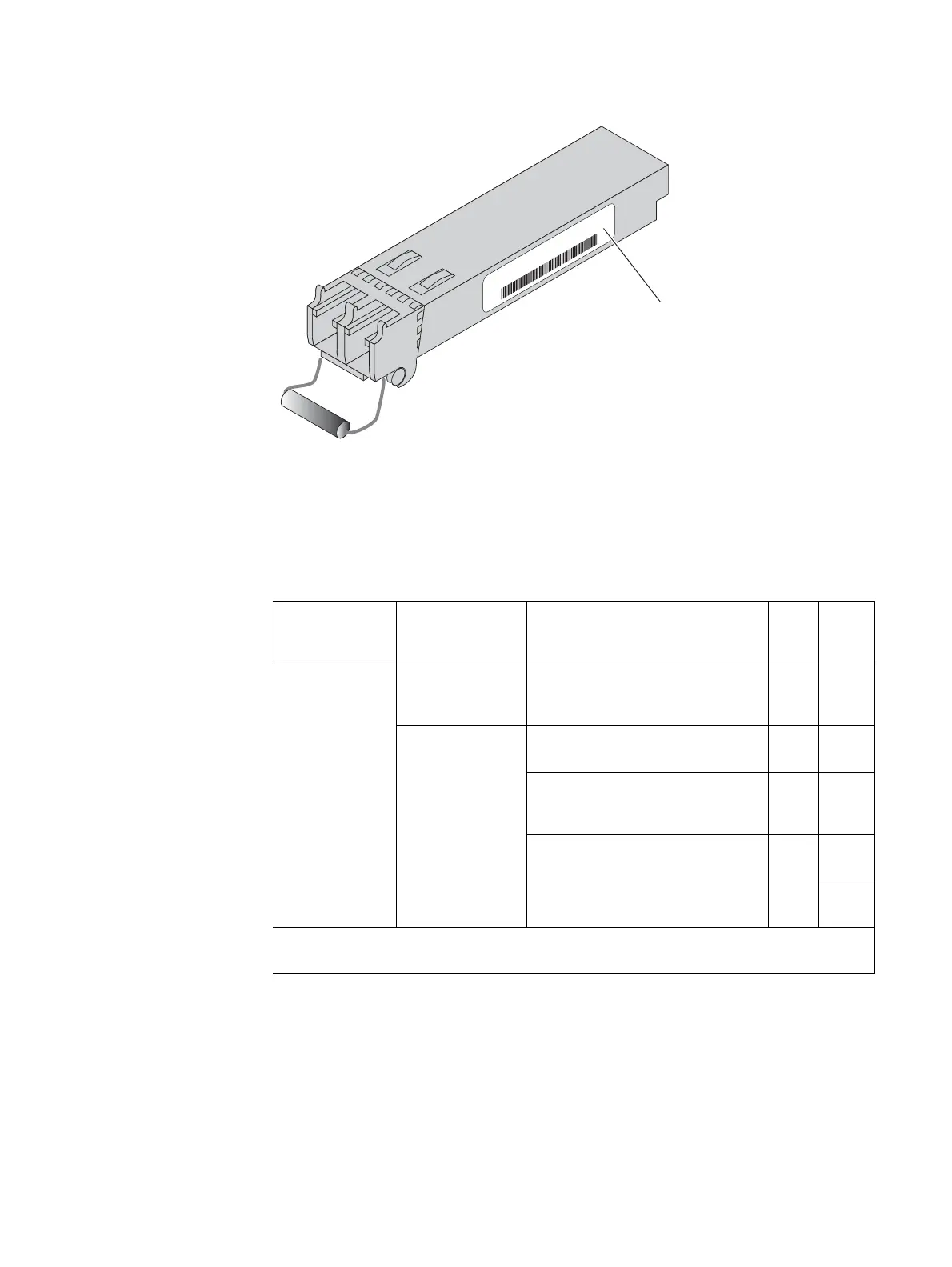

Figure 31 Example of an SFP
Table 26 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
CNS-001347
P/N: 000-XXX-000
Part Number (P/N) label
Table 26 SFP and SFP+ module part numbers
Part number label
location
(Figure 31) Part number Description FRU CRU
019-078-032
(SFP)
Used in the two-port 1-Gb/s copper
plus two-port 1-Gb/s Optical I/O
module (see note)
019-078-041
(SFP+)
Used in the two-port 10-Gb/s FCoE
I/O module
Used in the two-port 10-Gb/s optical
I/O module (latch label 10 GbE iSCSI
or v2)
Used in the two-port 10-Gb/s optical
I/O module (latch label 10-GbE v3)
019-078-042
(SFP+)
Used in the four-port 8-Gb/s Fibre
Channel (FC) I/O module
Note: Only the two optical ports (physically labeled on this I/O module as 2 and 3, but logically
fge-
x
-2 and fge-
x
-3) use this type of SFP.
