Disk-array enclosure (DAE)
EMC VNX7500 Parts Location Guide 51
Table 32 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
Due to the extensive variety of disk module types, Table 32 lists only a couple disk types.
EMC recommends that you refer to the latest
EMC VNX5100 and VNX5300 Series Storage
Systems Disk and OE Matrix
Guide
to ensure that you have the correct part for your
configuration.
Fan control module
To access the fan control modules, first slide out the 40U, 60 DAE from the rack. Then,
push the top cover towards the rear of the chassis. The fan control modules are located in
the front of the DAE (Figure 45).

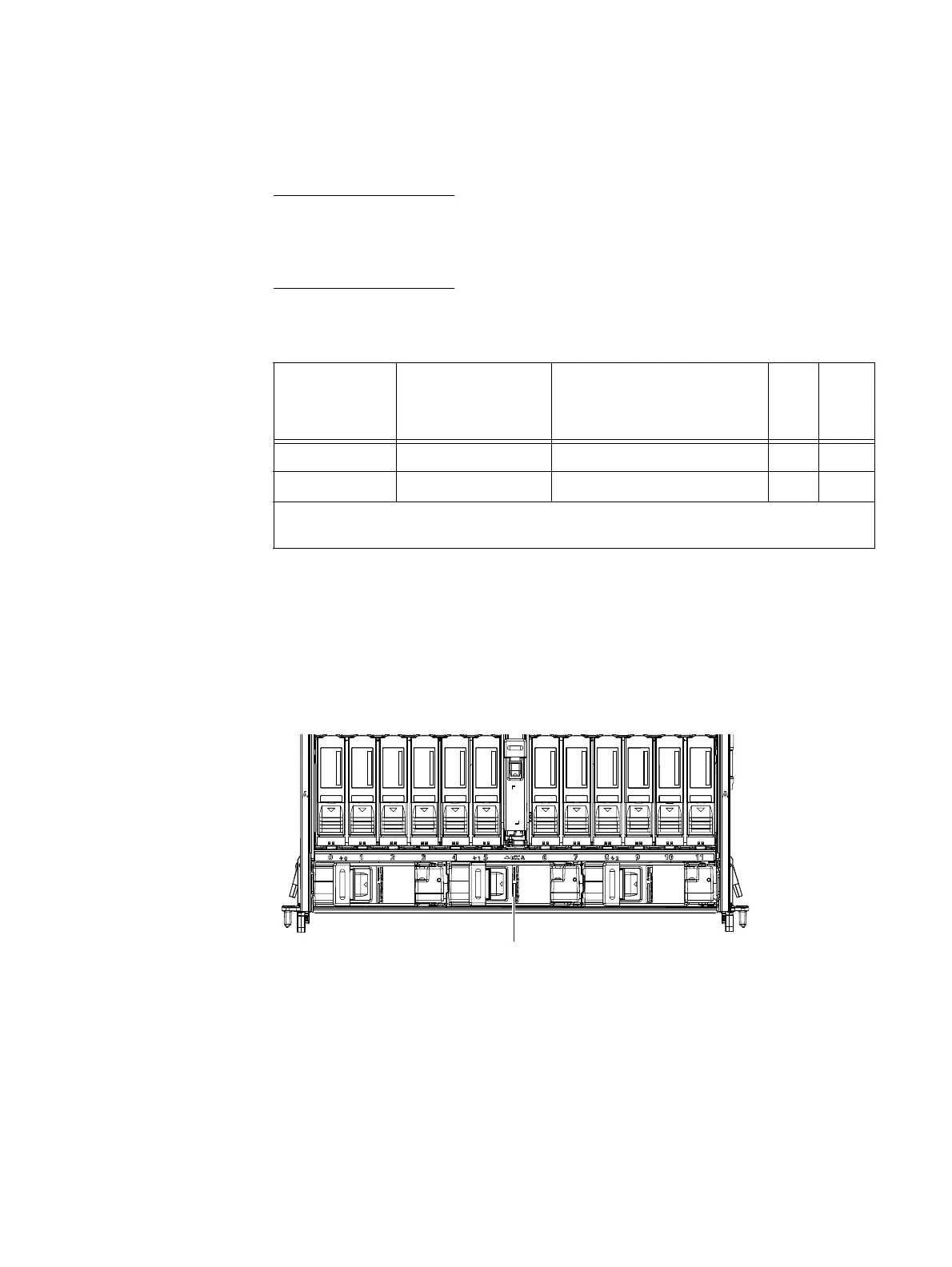

Figure 45 shows the location of the 4U, 60 DAE fan control module part number label.
Figure 45 Example of the 4U, 60 DAE fan control module
Table 32 DAE 4U, 60 disk module part numbers
Part number label
location
(Figure 44 on
page 50) Part number Description (see note) FRU CRU
005049284 600 GB, 6 Gb/s SAS, 10k rpm
005049207 900 GB, 6 Gb/s SAS, 10K rpm
Note: The description field describes the disk module type, capacity, drive type, and spindle
speed (rpm).
Part number (P/N) label VNX-000673
