54 EMC VNX7500 Parts Location Guide
Disk-array enclosure (DAE)
2U, 25 (2.5-inch) DAE LCC and power supply

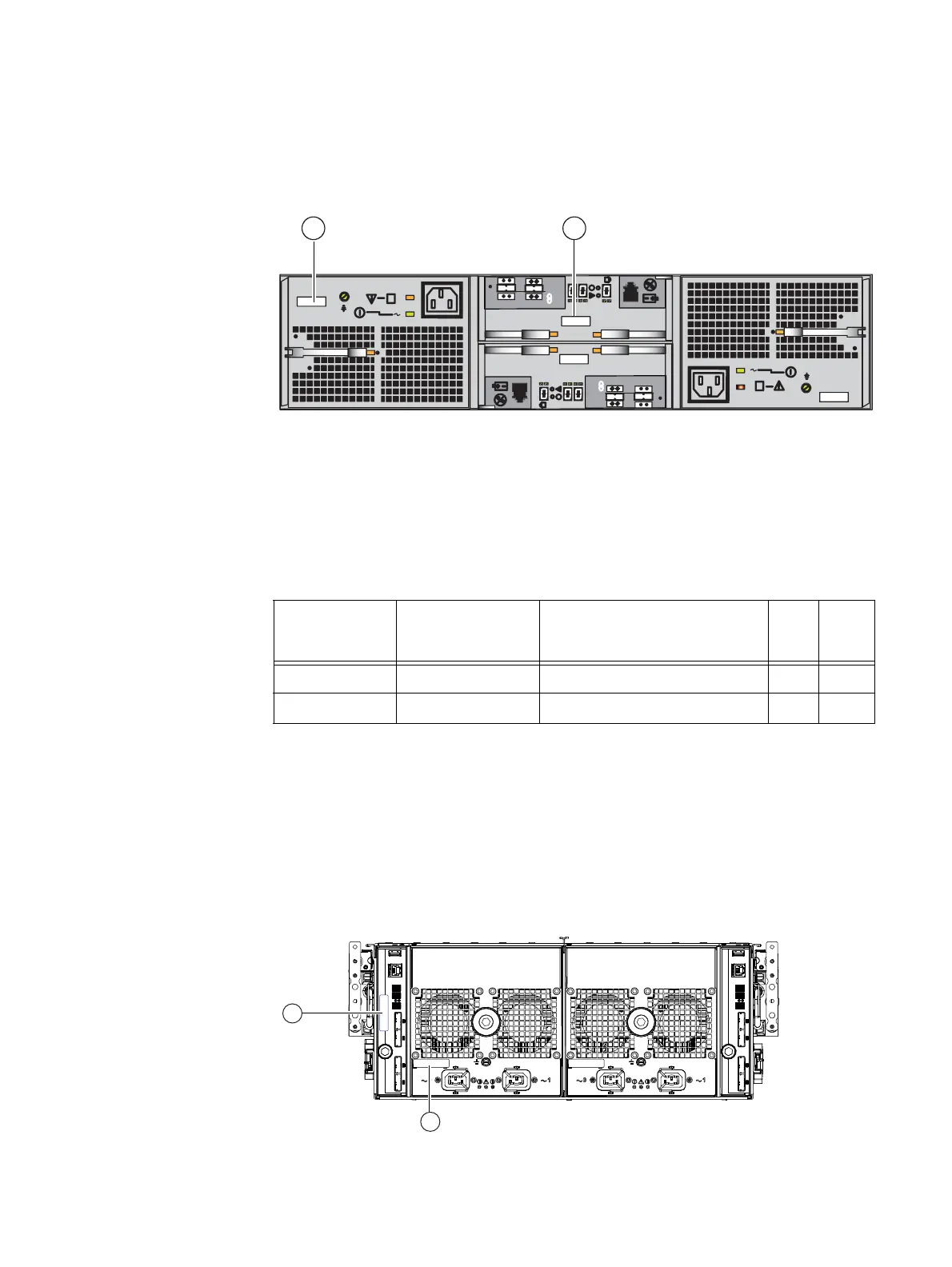

Figure 48 shows the part number label location on the rear of the 2U, 25 (2.5-inch) disk
drive DAE LCC and power supply.
Figure 48 Example of 2U, 25 (2.5-inch) LCC and power supply
Table 36 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
4U, 60 (2.5- or 3.5-inch) DAE ICM and power supply
Figure 49 shows the part number label location on the rear of the 4U, 60 (2.5- or 3.5-inch)
DAE for the ICM and the power supply.
Figure 49 Example of 4U, 60 (2.5- or 3.5-inch) DAE ICM and power supply
6 Gb SAS
X4
#
6 Gb SAS
X4
#
1 2
VNX-000606
Table 36 2U, 25 (2.5-inch) LCC and power supply part numbers
Part number label
location
(Figure 48) Part number Description FRU CRU
1 071-000-541 LCC B power 400 W 12 V supply
1

2 303-104-001E LCC B
2

1. The rear of the 2U, 25 (2.5-inch) DAE has the LCC power supplies inverted or on opposite sides. In other
words, LCC B power supply is located on the left of the DAE and LCC A power supply is located on the right
(Figure 48).
2. The rear of the 2U, 25 (2.5-inch) DAE has the LCCs inverted or on top of each other. In other words, LCC B is
located on the top and LCC A is located on the bottom (Figure 48).
2
1
VNX-000674
