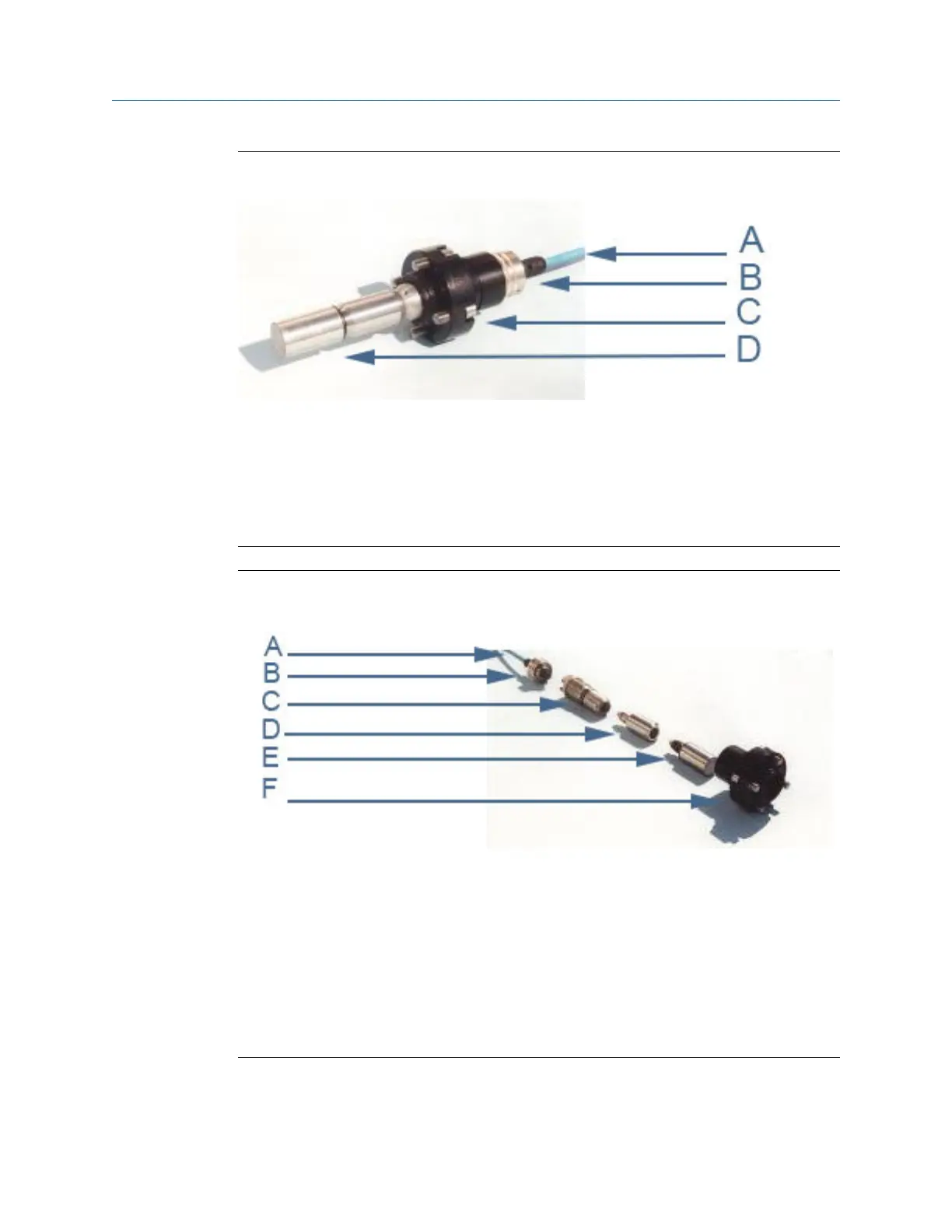

J-Mount transducer assemblyFigure 3-2:
A. Transducer cable (max. length 15 ft.)
B. Transducer cable nut and chordset
C. Mount
D. Transducer assembly, stalk and holder
J-Mount transducer disassemblyFigure 3-3:
A. Transducer cable (max. length 15 ft.)
B. Transducer cable nut and chordset
C. Transducer holder
D. Transducer stalk (optional)
E. Transducer
F. Mount
Meter repairs
Maintenance and Troubleshooting manual 47
