L
Hldr2
transducer 2 holder length (in)
Tip
The transducer “L” dimension is re-calculated when you run the Transducer Swap-out utility.
3.4 Transducer holder removal and installation
WARNING!
CONTENTS MAY BE UNDER PRESSURE
When the meter is under pressure, DO NOT attempt to remove or adjust the transducer holder.
Attempting to do so may release pressurized gases, resulting in serious injury or equipment
damage.
WARNING!
CONTENTS MAY BE HAZARDOUS
The meter must be fully depressurized and drained before attempting to remove the
transducer holder. If gas or fluid begins to leak from the transducer holder, stop immediately
and reinstall the holder.
Failure to comply may cause serious injury or equipment damage.

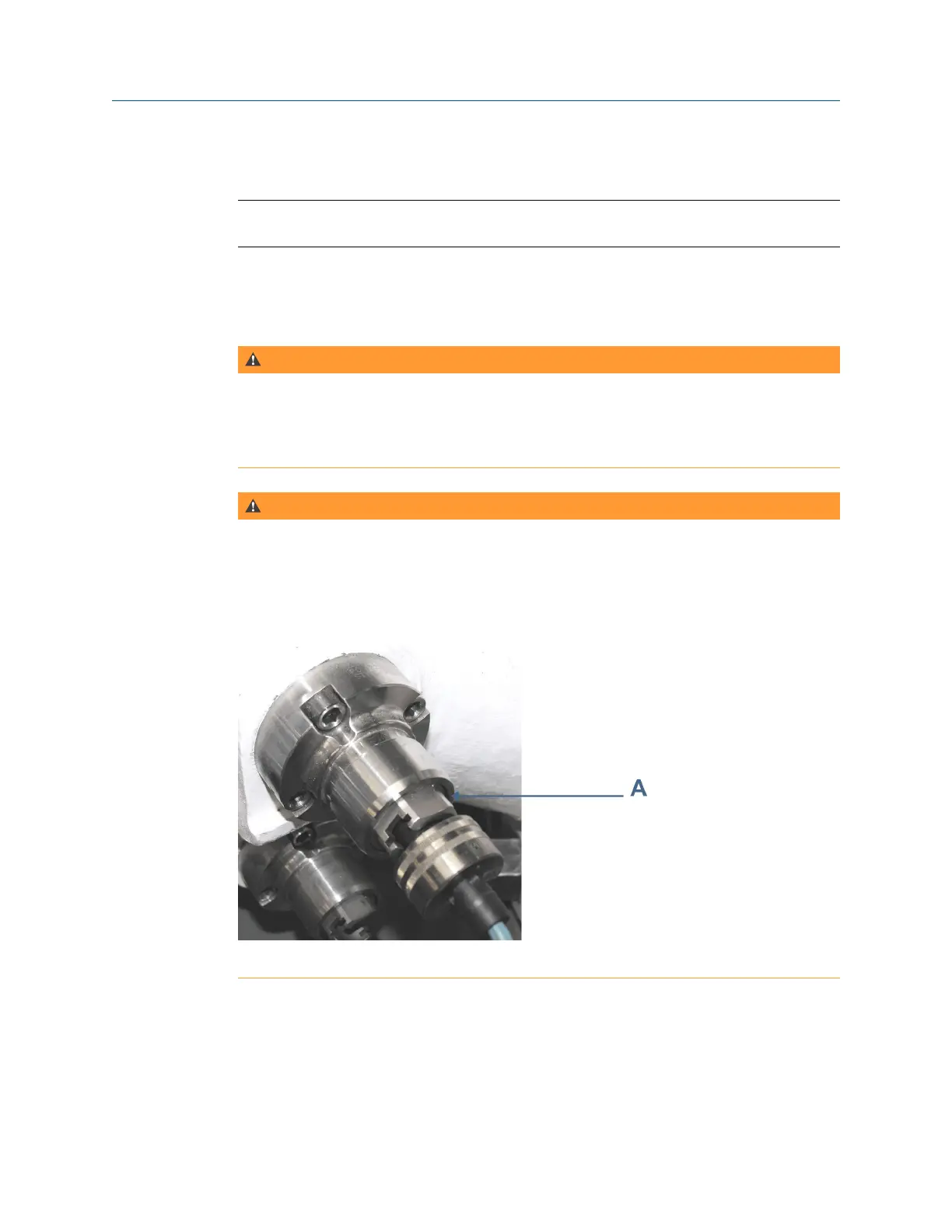

A. Transducer holder
Meter repairs
56 Gas Ultrasonic Flow Meters
