Emerson FB1200 Flow Computer Instruction Manual
D301782X012
March 2019
100 ATEX Non-Sparking Zone 2 Certifications
Enclosure Rating: IP66
Terminal blocks for the FB1200 Flow Computer have the following characteristics:
▪
Terminal blocks can accommodate two conductors per channel.
▪
Stranded or solid wire allowed.
▪
Torque values: NM 0.5-0.6
▪
Wire size: 28-12 AWG (0.08 – 3.3 mm
2
); (0.32 – 2.05 mm)
Bristol Inc. d.b.a. Remote Automation Solutions
1100 Buckingham Street
Watertown, CT 06795 U.S.A.

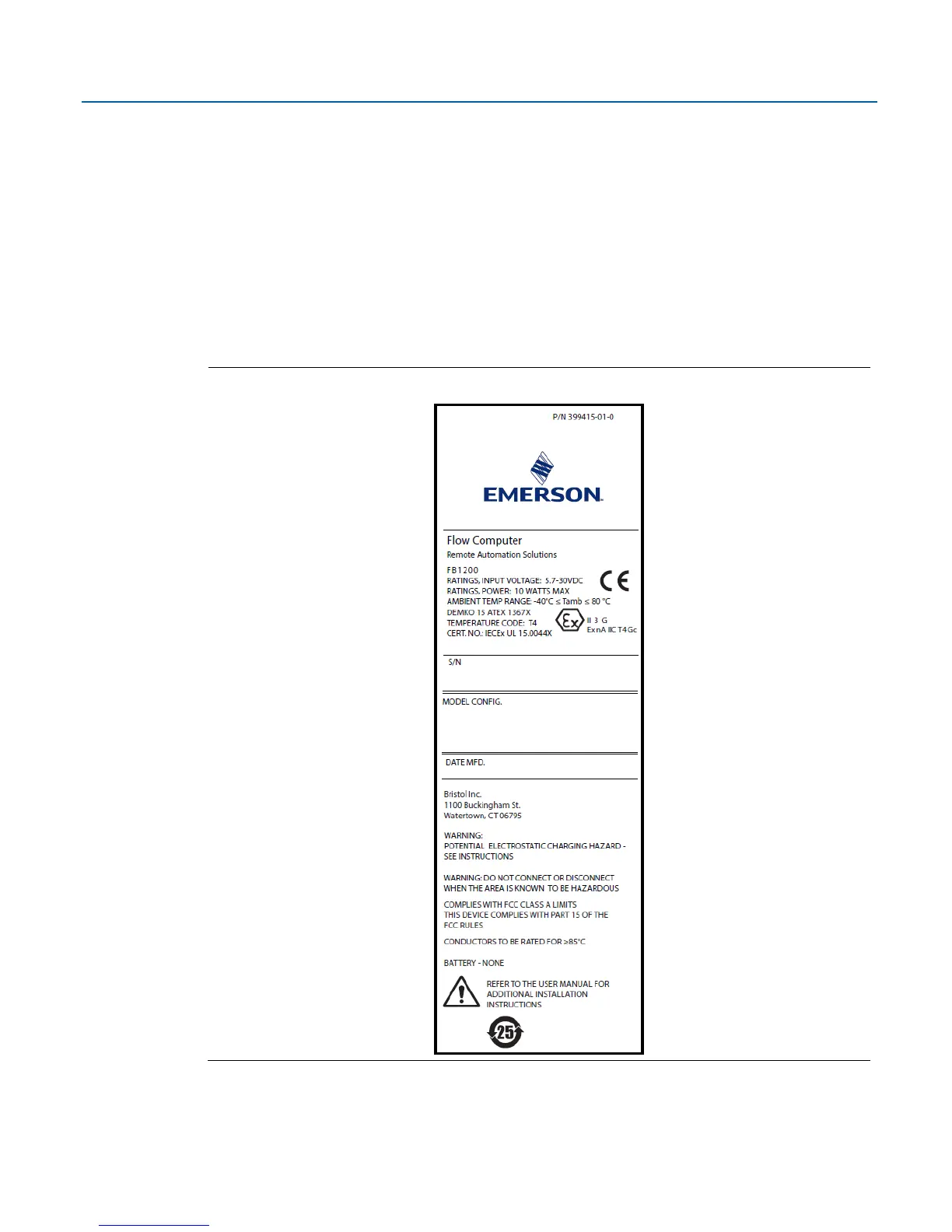

Figure C-1: Data Plate – ATEX nA Non-Sparking
