Emerson FB1200 - Location of Ethernet Port

Emerson FB1200 Flow Computer Instruction Manual
D301782X012
March 2019
Installation 49

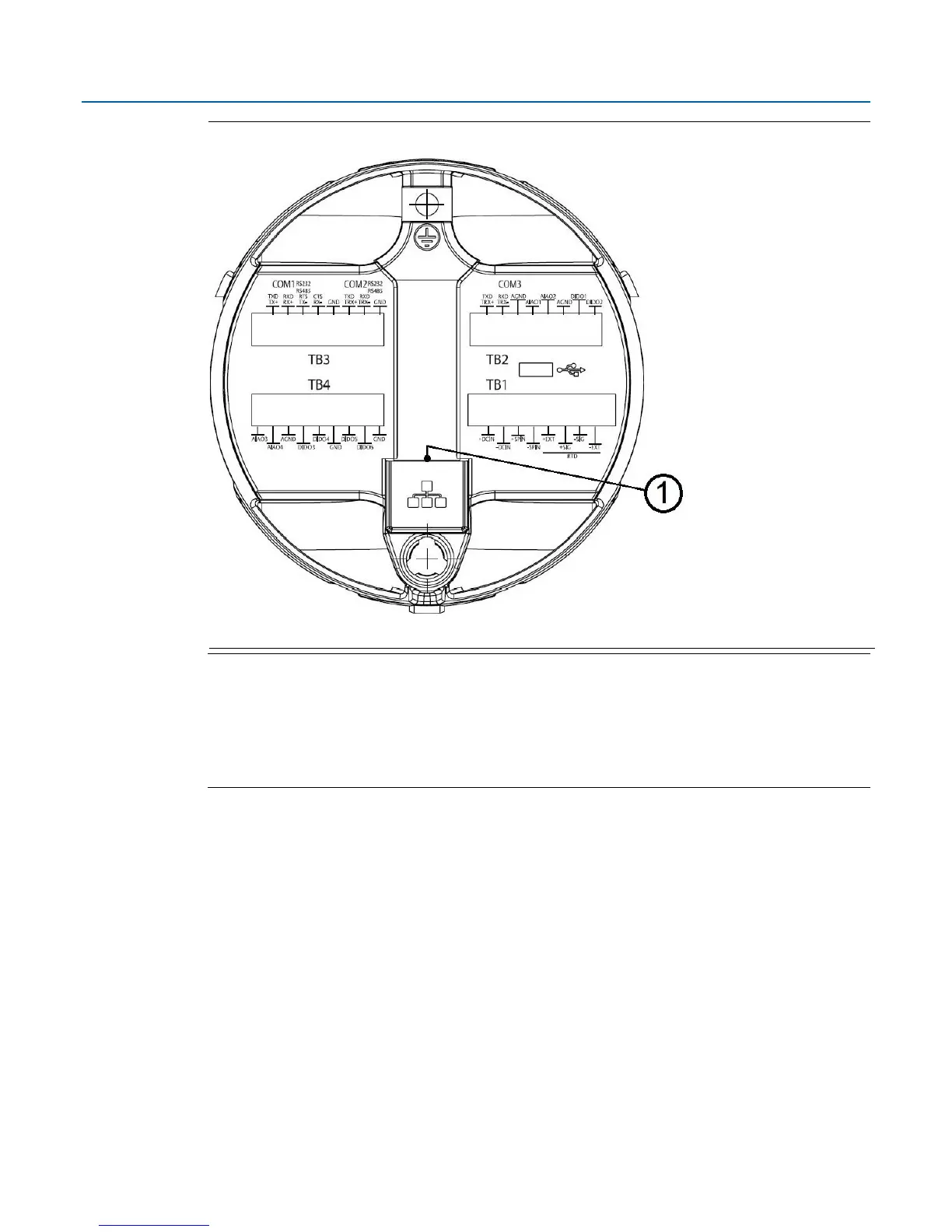

Figure 2-35: Location of Ethernet Port
1
Ethernet Port
Note
If you ordered Ethernet, the unit ships with Ethernet enabled. If you need to operate the device in
lower power mode, you must disable Ethernet. Jumper J10 on the CPU module (see Figure 2-36)
controls whether Ethernet is enabled or disabled (lower power mode). See the CPU Module Field
Replacement Guide (D301802X012) for information on how to open the unit to gain access to the
CPU module.
