Emerson FB1200 - Traditional Flange Mounting Kit

Emerson FB1200 Flow Computer Instruction Manual
D301782X012
March 2019
22 Installation

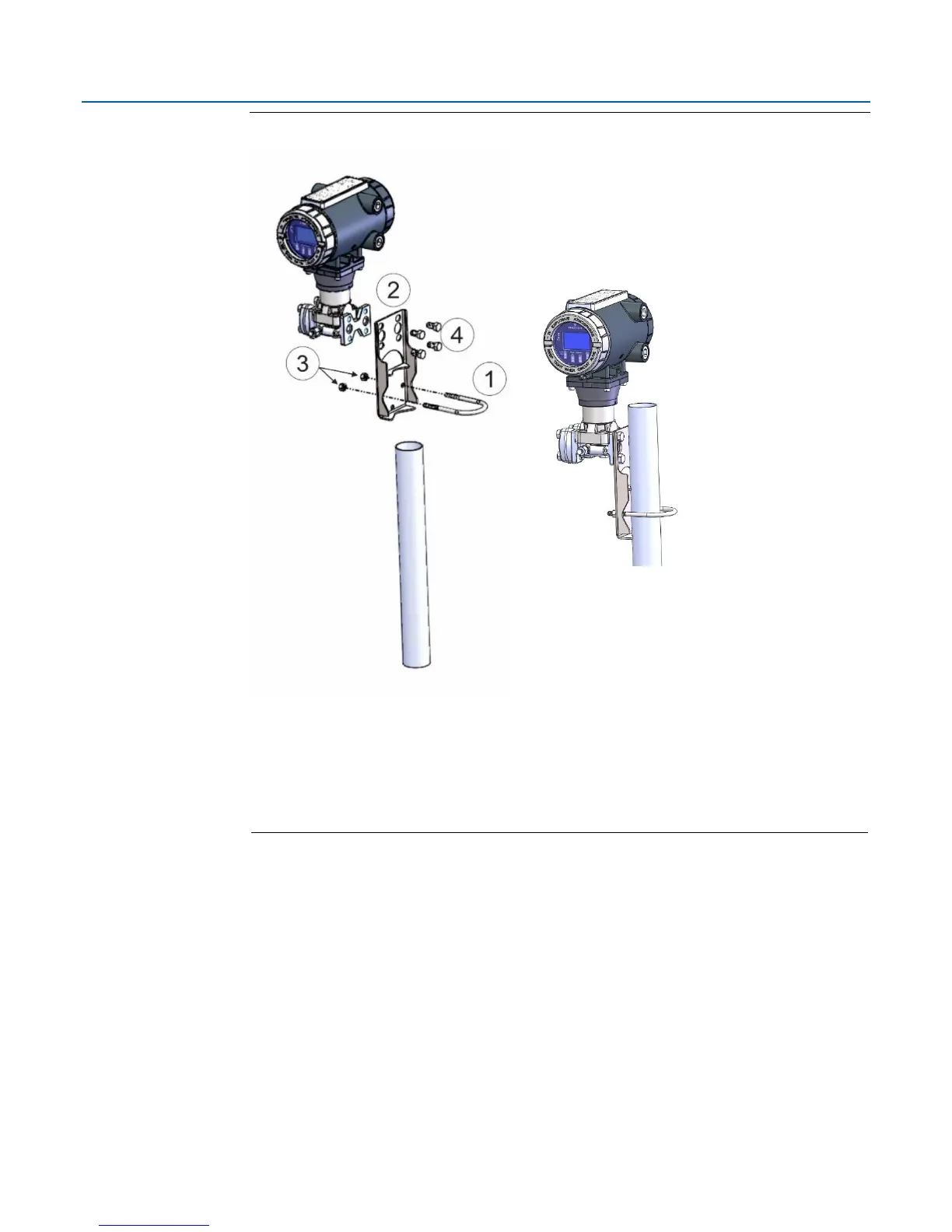

Figure 2-15: Traditional Flange Mounting Kit
1
2.0 in. pipe diam. U-bolt assembly (5/16-18 x 4.0 LG) with (2) nuts (item 3)
2
Mounting bracket
3
Apply Loctite
®
222™ Low Strength Purple Threadlocker to nuts. Torque nuts to 30
in-lbs (3.4 N m
4
7/16-20 x .625 cs/zinc cobalt screws (4). Torque to 30 in-lbs (3.4 N m)
