Emerson FB1200 Flow Computer Instruction Manual
D301782X012
March 2019
60 I/O Configuration and Wiring

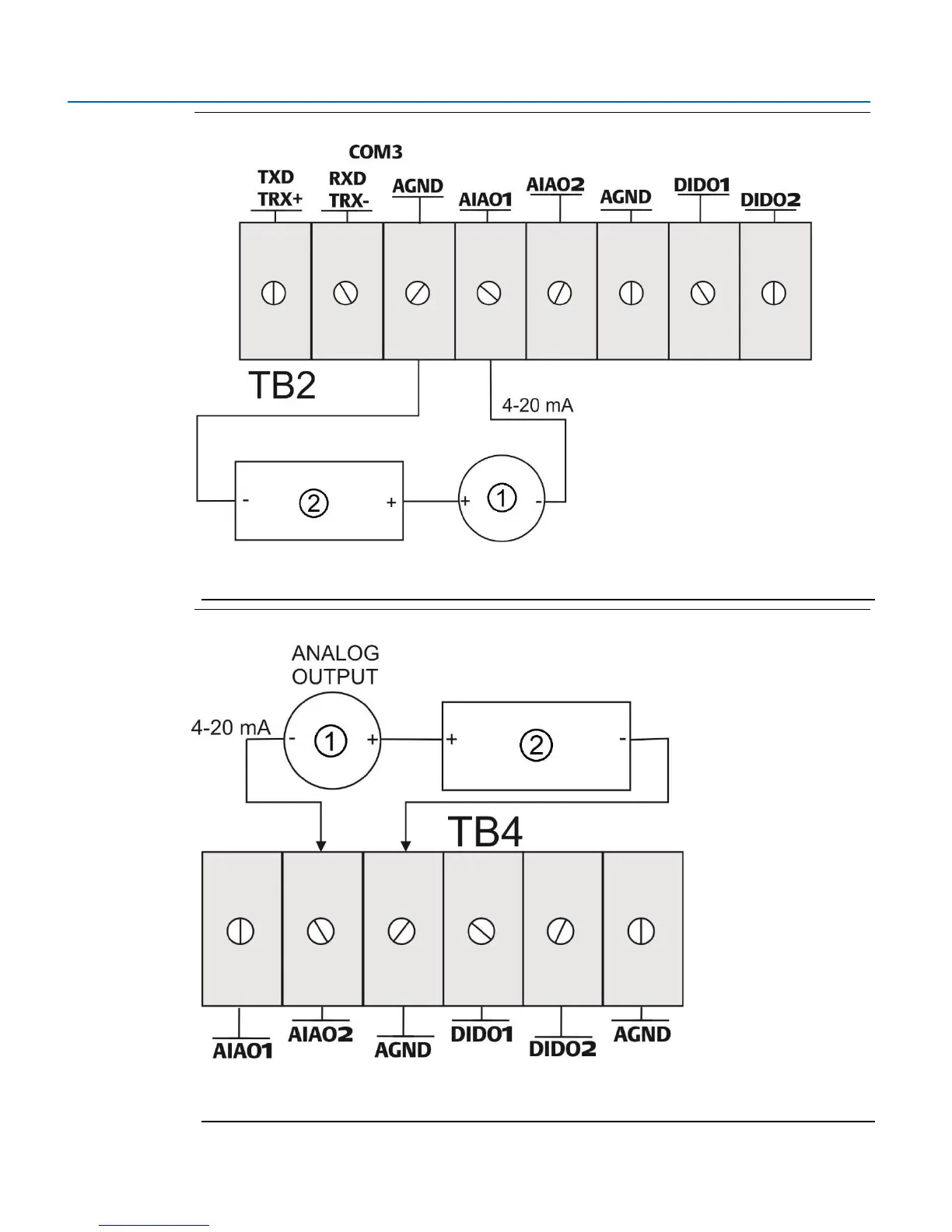

Figure 3-9:
AO Wiring (Base I/O with Optional I/O)
1
Field Device
2
Power Supply 30Vdc Max
Figure 3-10: AO Wiring (Base I/O without Optional I/O)
1
Field Device
2
Power Supply 30Vdc Max
