16 Installation
2.6 Front or Rear End Caps
The flow computer includes two threaded covers (end caps). The front end cap includes a window
for viewing the HMI module; the rear end cap provides access to the terminal plate for power and
I/O wiring.
2.6.1 Removing/Replacing Retaining Clamp on End Caps
For flameproof ATEX/IEC applications, each end cap includes a retaining clamp which screws down
to prevent the end cap from being unscrewed.

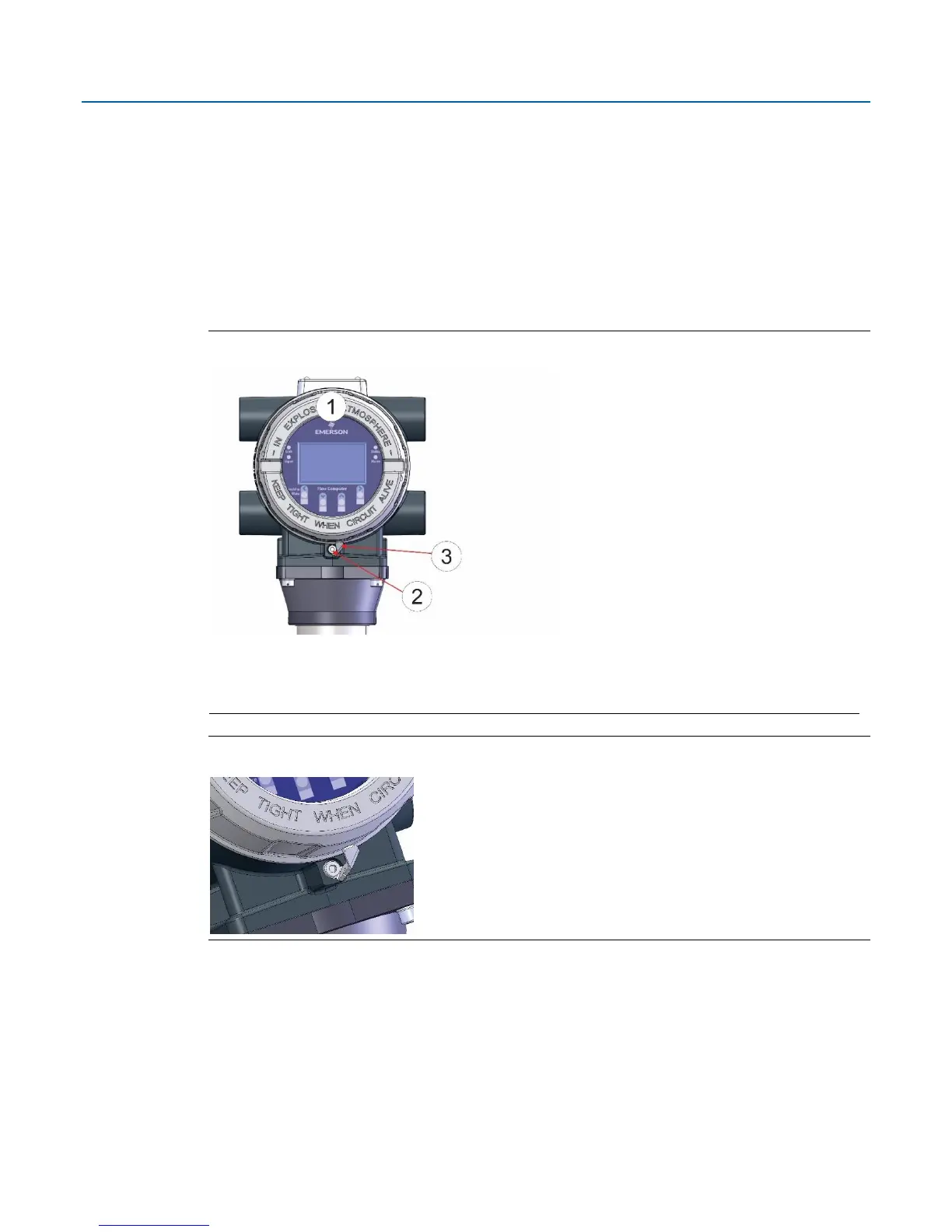

Figure 2-4: Front End Cap with Retaining Clamp Fitted
1
End Cap
2
Screw
3
Retaining Clamp
Figure 2-5: Retaining Clamp in Place
To loosen or tighten the screw, use a 3mm hexagonal wrench. When tightening, torque to 12 in-lbs
(1.4 N m).
