Emerson FB1200 Flow Computer Instruction Manual
D301782X012
March 2019
54 I/O Configuration and Wiring

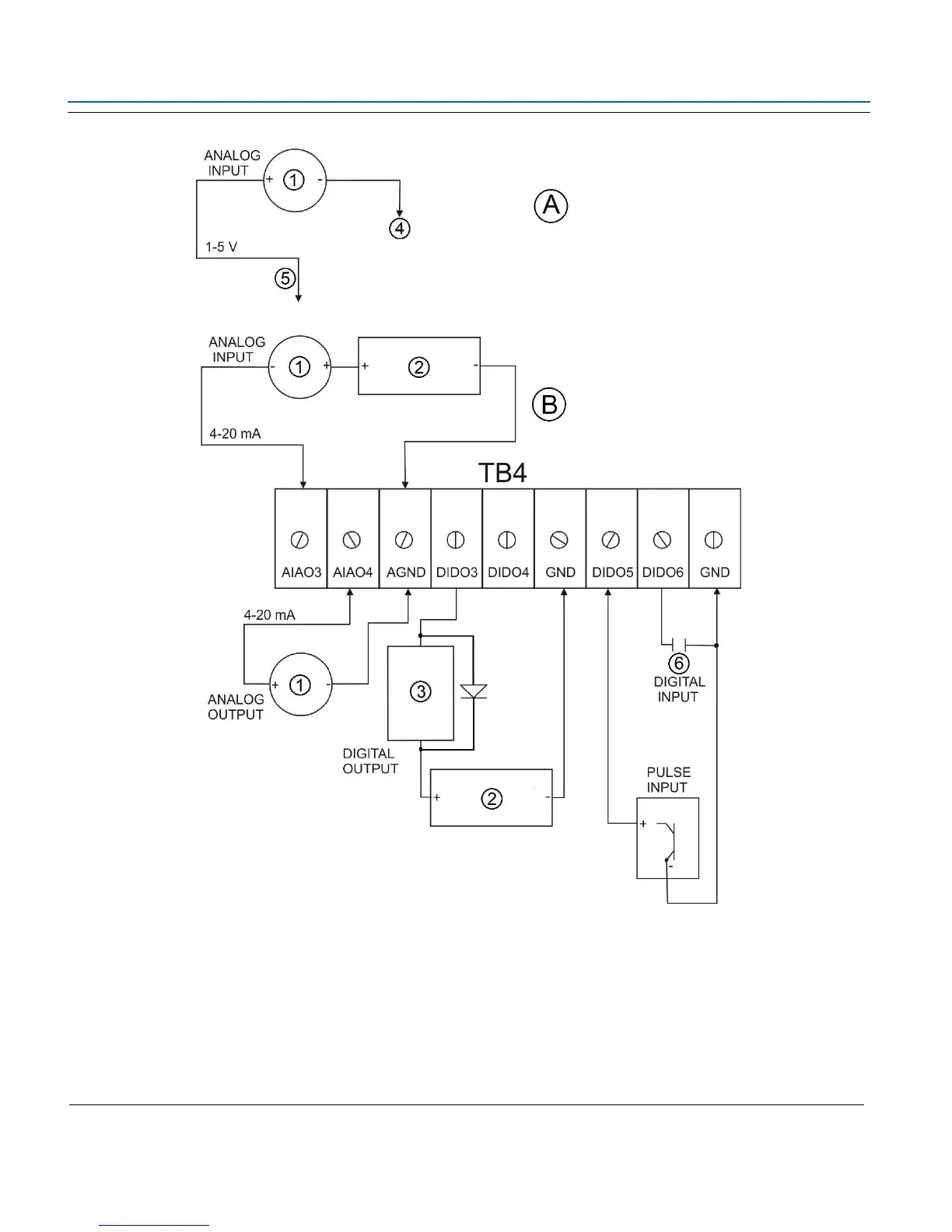

Figure 3-3: Optional 6-channel Expansion I/O Module
A
When wiring a 1-5 V Analog Input (AI), use configuration at left
B
When wiring a 4-20 mA Analog Input (AI), use configuration at left
1
Field Device
2
Power Supply 30Vdc Max
3
500 mA load max
4
To AGND
5
To AIAOx
6
Dry contact
