Emerson FB1200 Flow Computer Instruction Manual
D301782X012
March 2019
58 I/O Configuration and Wiring

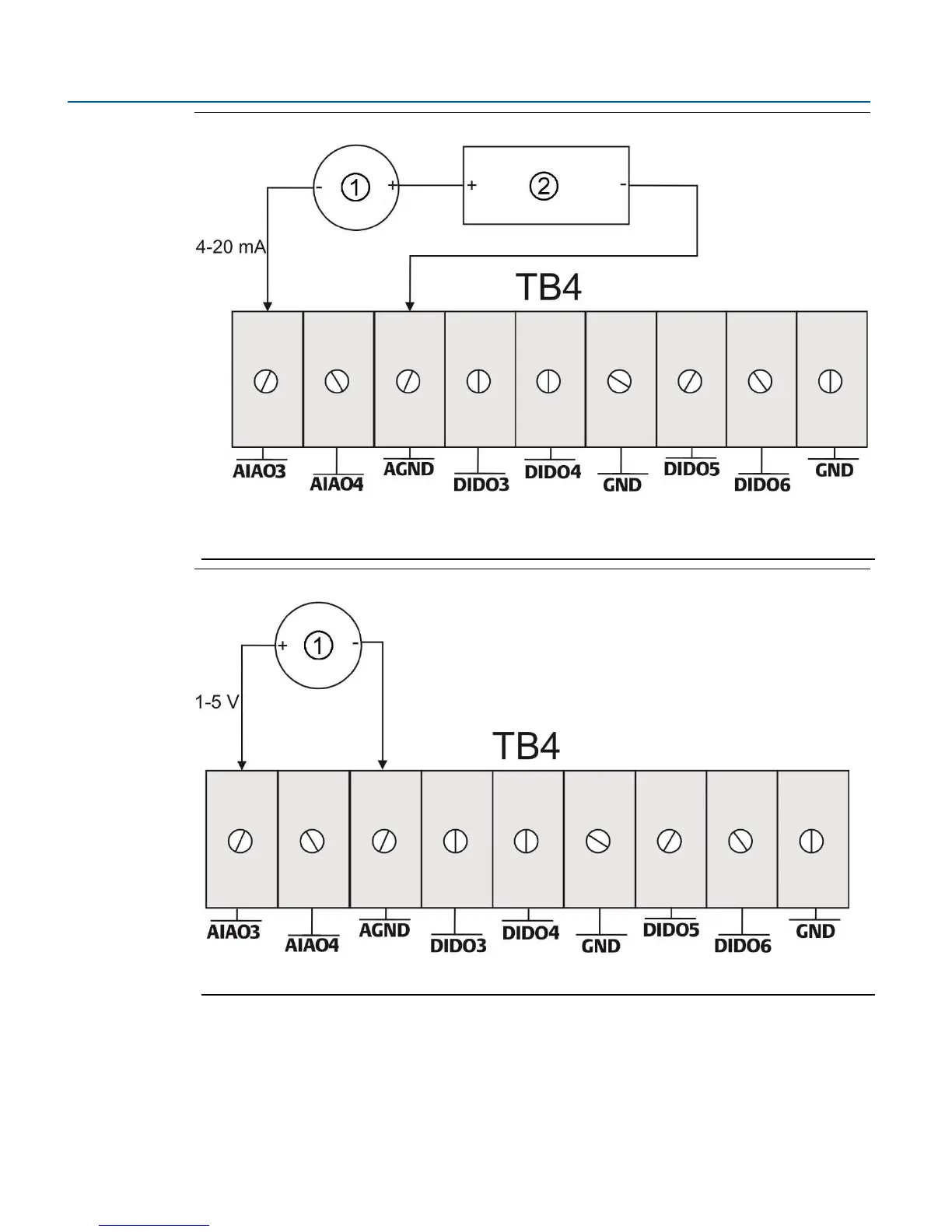

Figure 3-7: 4-20 mA AI Wiring (with Optional 6-channel Expansion I/O Module).
1
Field Device
2
Power Supply 30Vdc Max
Figure 3-8:
1-5 V Analog Input (AI) Wiring (Optional 6-channel Expansion I/O Module
1
Field Device
