Emerson FB1200 Flow Computer Instruction Manual
D301782X012
March 2019
68 I/O Configuration and Wiring

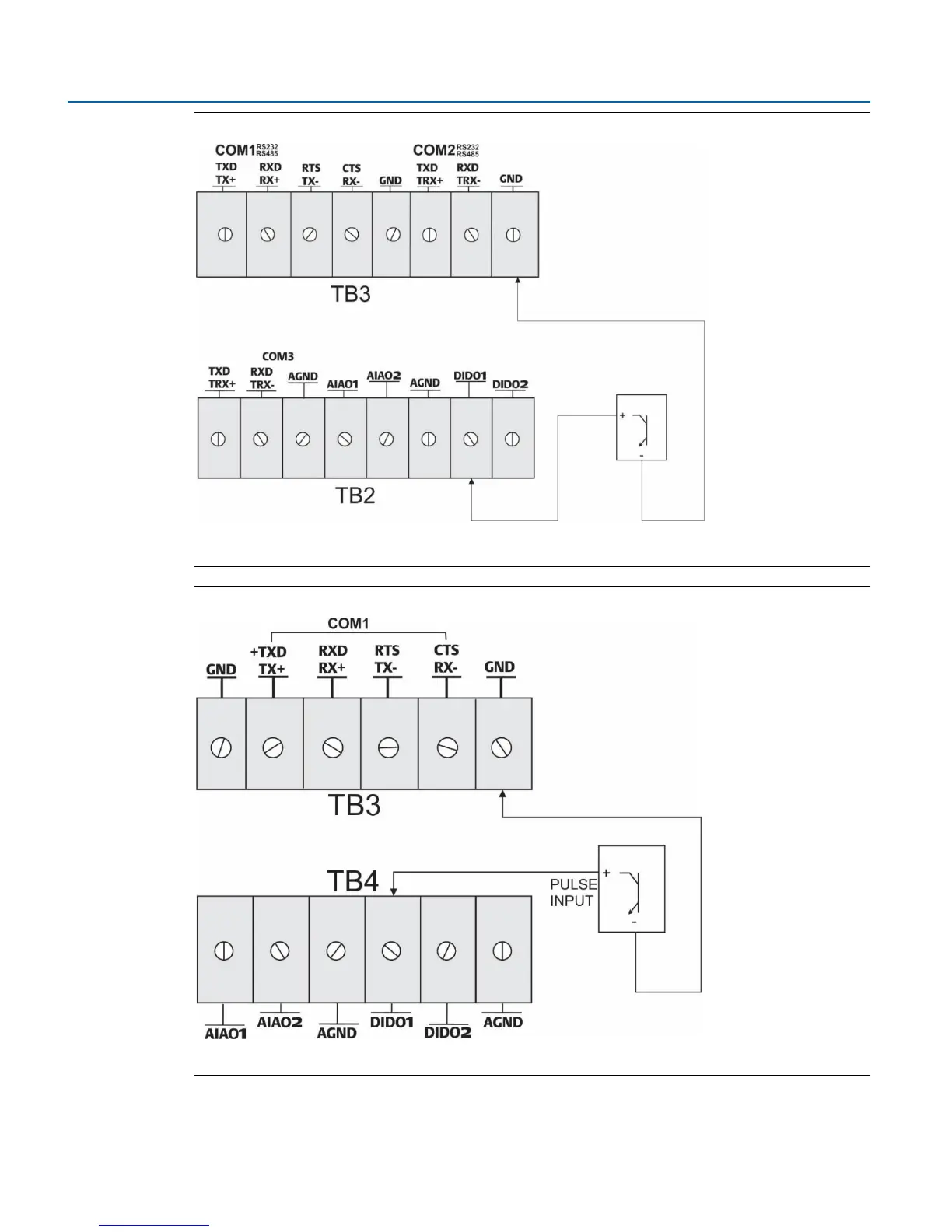

Figure 3-18: PI Wiring (Base I/O with Optional I/O)
Figure 3-19: PI Wiring (Base I/O without Optional I/O)
