178 Micro Motion Series 1000 and Series 2000 Transmitters
Flowmeter Installation Types and Components

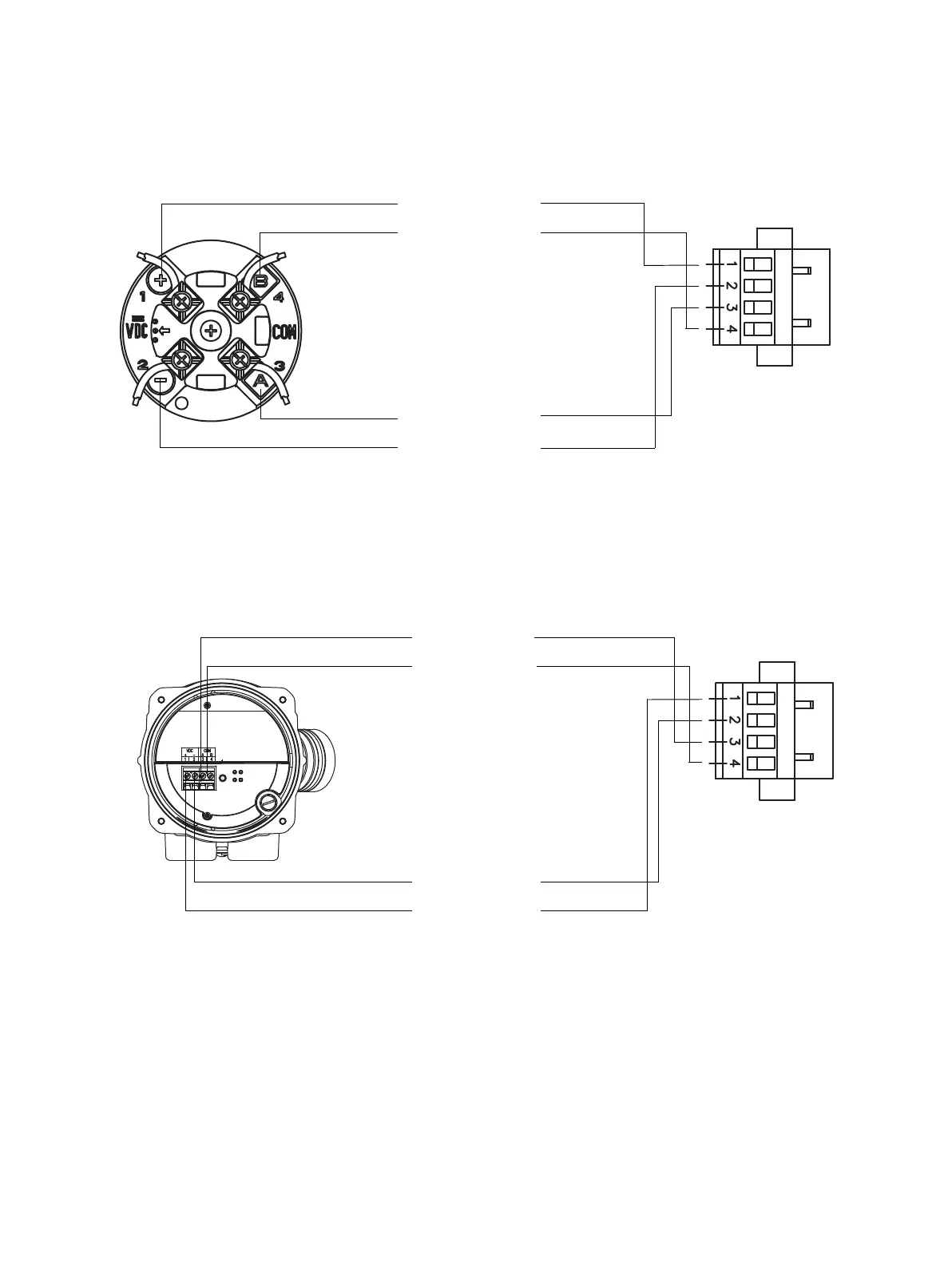

Figure B-13 4-wire cable between Model 1700/2700 transmitter and standard core processor
Figure B-14 4-wire cable between Model 1700/2700 transmitter and enhanced core processor
Mating connector
(transmitter)
Core processor
terminals
VDC+ (Red)
VDC– (Black)
RS-485/B (Green)
RS-485/A (White)
User-supplied or
factory-supplied 4-wire cable
Mating connector
(transmitter)
Core processor
terminals
VDC+ (Red)
VDC– (Black)
RS-485/B (Green)
RS-485/A (White)
User-supplied or
factory-supplied 4-wire cable
