Emerson Rosemount OCX8800 User Manual

Instruction Manual
IM-106-880C, OI
Repair Sensor
Housing
April 2017
Install COe Sensor
Assembly
21
1

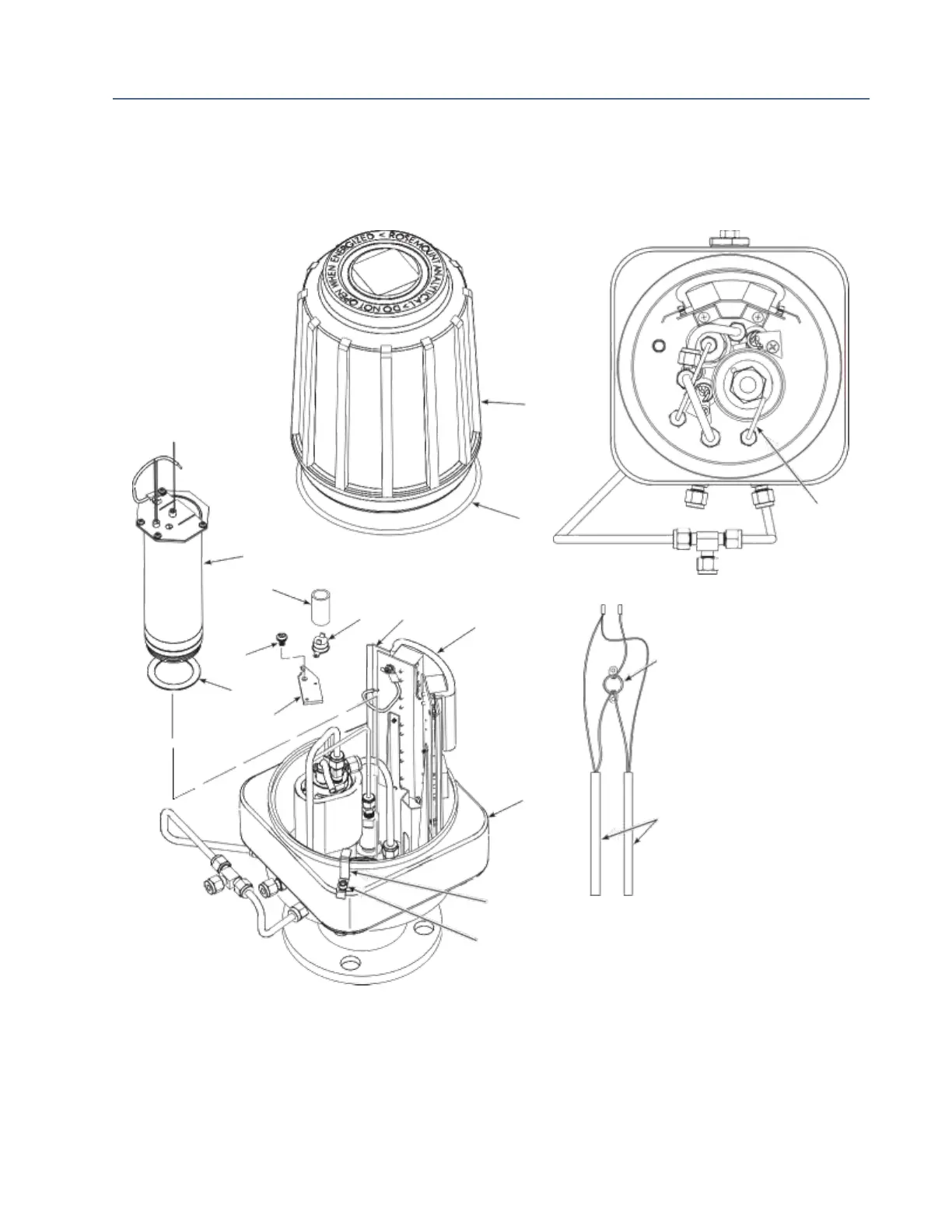

Figure 9-22 Installation of O
2
Cell and Heater Strut Assembly
1. Screw
2. Locking Clip
3. Cover
4. O-ring
5. Marking Plate
6. Terminal Insulator
7. Reference Air Tube
8. Sensor Housing
9. Heater Strut Assembly
10. Gasket
11. Screw
12. Heater Clamp
13. Heater Rod
14. Insulator
3
15. Thermal Switch
7
4
9
14
15 5
6
11
15
10
12
8
13
2
1
37390066
