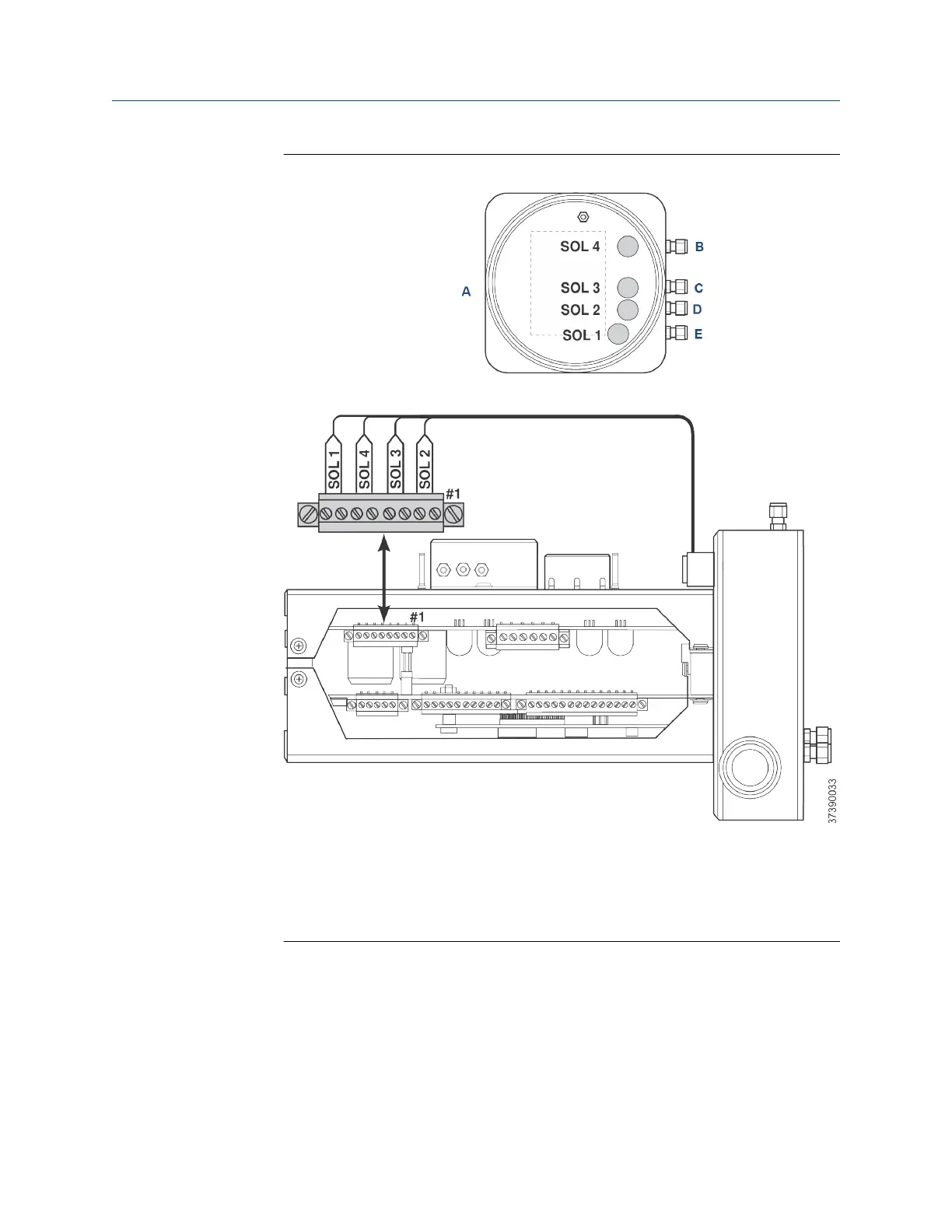

Figure 10-27: Solenoid Power Terminals
A. Top view
B. CO test gas
C. High O
2
test gas
D. Low O
2
test gas
E. Instrument air
Install electronics stack
Procedure
1. Install electronics stack (N, Figure 10-25) and secure with lockwashers (H)
and screws (G).
