2. See Figure 10-27 and Figure 10-28. Reconnect power cable, signal cable, and
solenoid lead connectors to electronics stack terminals.

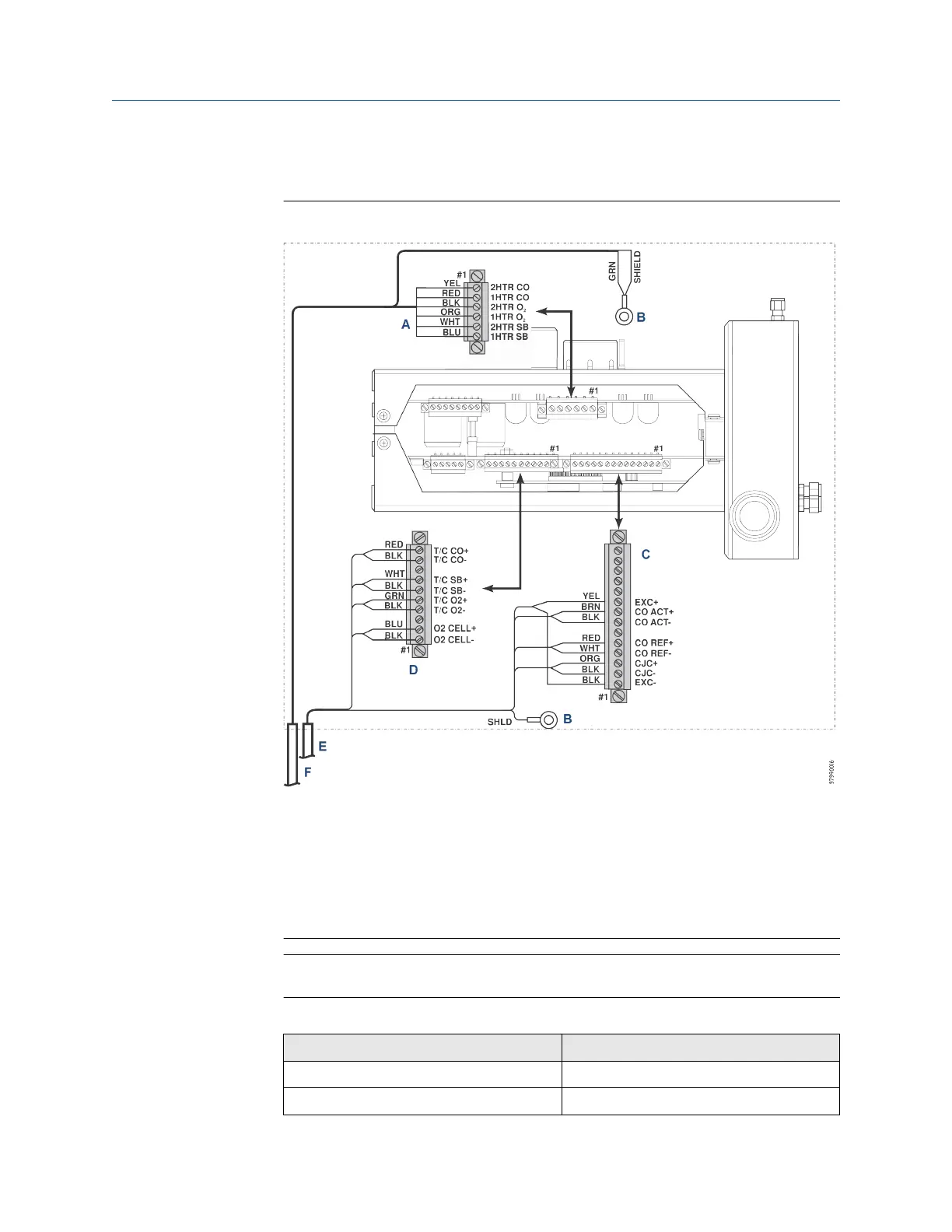

Figure 10-28: Electronics Housing Cable Connections
A. Heater power connector (J3)
B. To ground screw
C. COe and CJC connector (J4)
D. O
2
cell and thermocouple connector (J5)
E. Signal cable
F. Heater cable
Note
Wire colors shown are for cables supplied by Emerson.
Table 10-5: J3 Connections
Wire color Connects to
Yellow 2 heater CO
Red 1 heater CO
Maintenance and service Manual
December 2022 00809-0500-4880
286 Emerson.com/Rosemount
