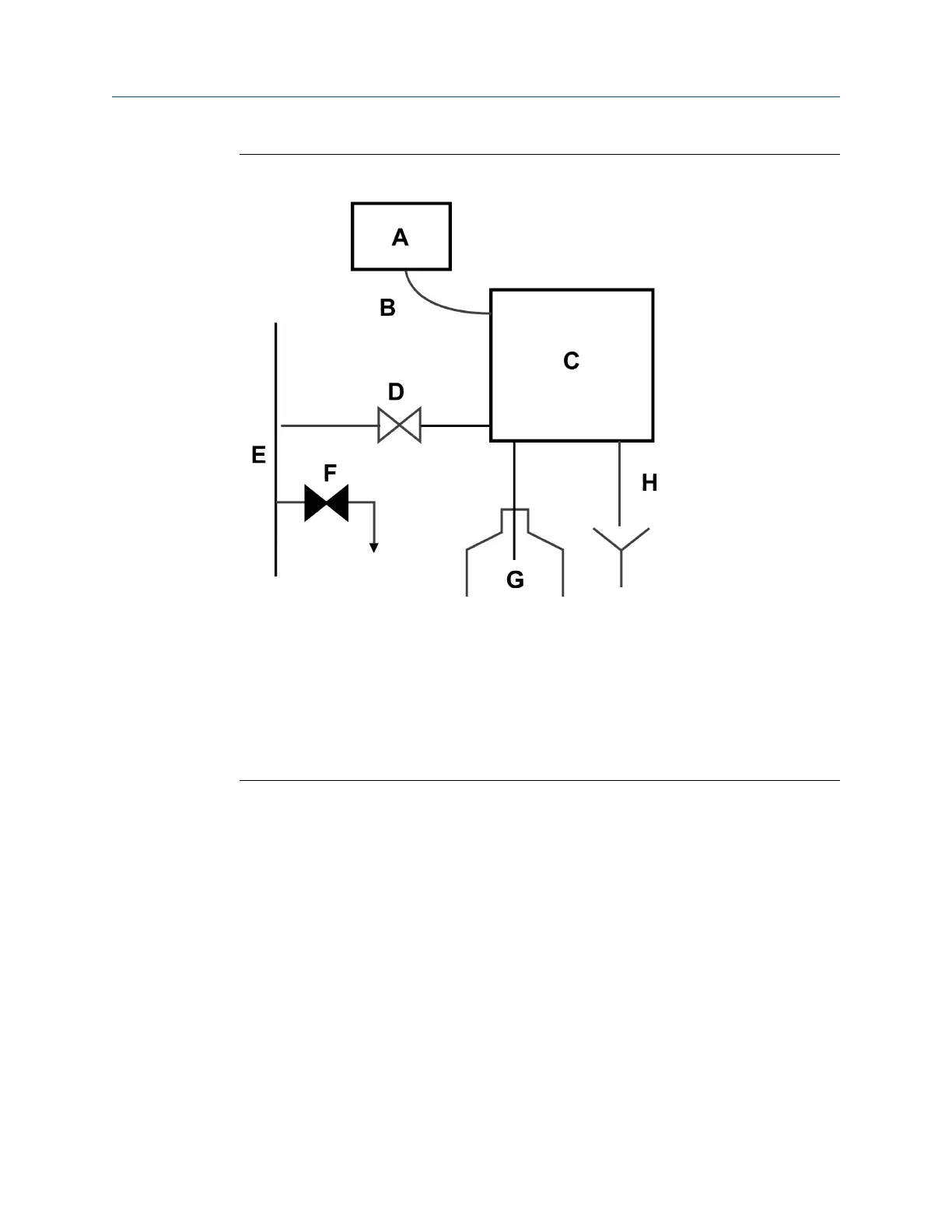

Figure 3-1: Installing the Sample Conditioning Enclosure
A. Transmitter
B. Sensor cable
C. Rosemount
TCL enclosure
D. Sample inlet ¼-in. OD tubing
E. Process piping
F. Sample tap
G. Reagent bottle
H. Drain ¾-in. barbed fitting
Installation Reference Manual
January2023 00809-0200-3415
12 Emerson.com/Rosemount
