7.5  Temperature
7.5.1  Menu tree

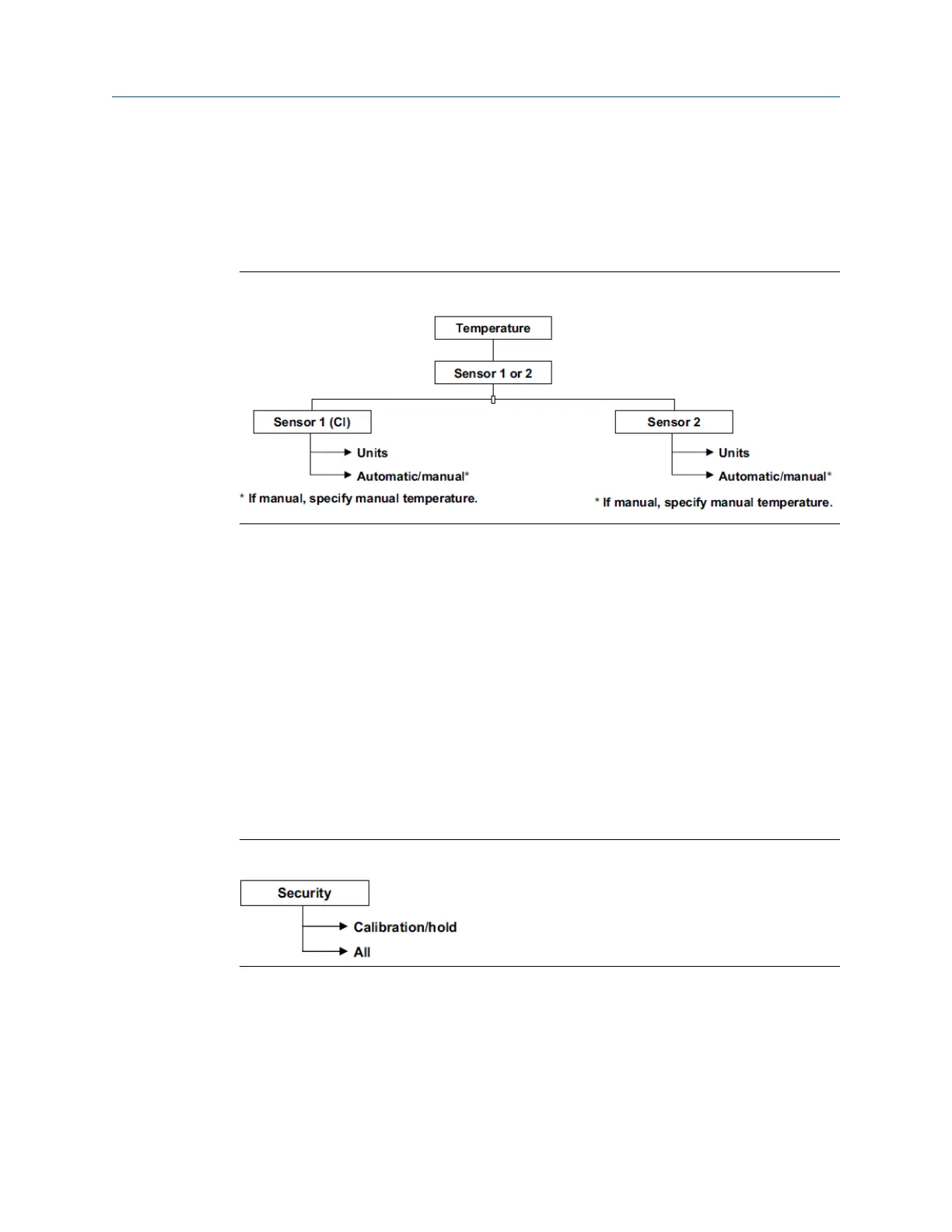

Figure 7-4 is the Temperature menu tree.
Figure 7-4: Menu tree for the Temperature submenu
7.5.2  Configure temperature settings
Complete the following steps to change the temperature settings on your 56 Transmitter.
Procedure
1. Move the cursor to the appropriate control box and make the desired setting.
2. For more information about the control the cursor is on, press INFO.
3. To close the information screen, press any key.
7.6 
Security
7.6.1  Menu tree
Figure 7-5 is the Security menu tree.
Figure 7-5: Menu Tree for the Security Sub-Menu
7.6.2  Configure security settings
Complete the following steps to change the security settings on your 56 transmitter.
Procedure
1. Move the cursor to the appropriate control box and make the desired setting.
2. For more information about the control the cursor is on, press INFO.
Reference Manual Programming the transmitter
00809-0200-3415 January2023
Rosemount TCL 56 39
